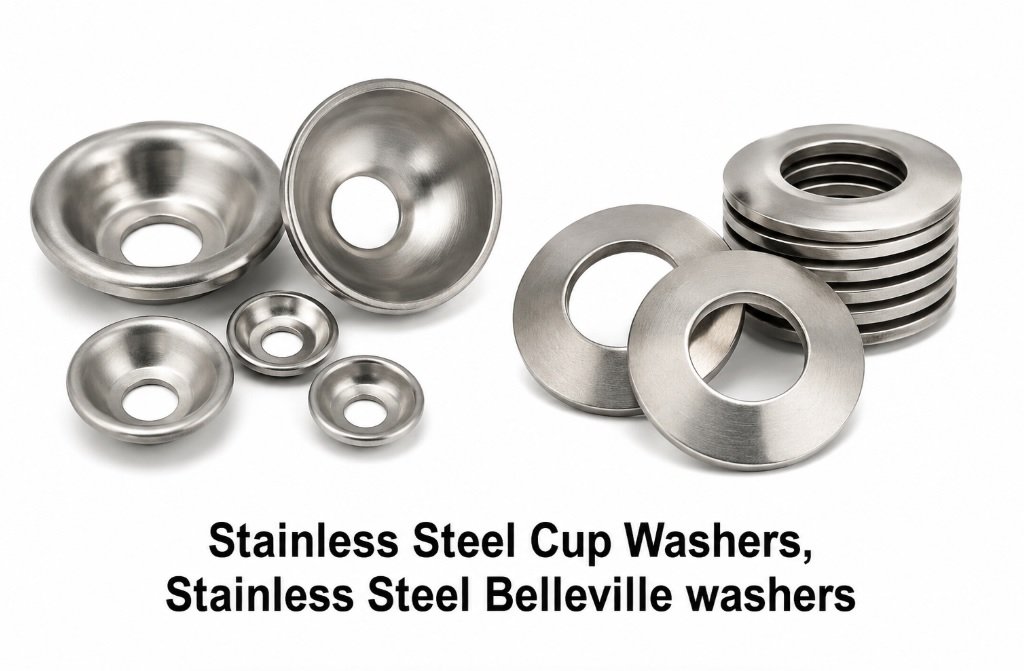

Stainless Steel Cup Washers, Stainless Steel Belleville Washers – Manufacturer, Supplier & Exporter India

Stainless Steel Fittings India manufactures a comprehensive range of stainless steel cup washers, Belleville disc springs, conical spring washers, curved washers, wave spring washers, and domed insulation washers in SS 301, SS 304, SS 316, and SS 316L grades. Designed for electrical switchgear assemblies, transformer bushings, insulator stacks, structural bolted joints, and instrumentation panels where standard flat washers cannot provide controlled spring load, gap take-up, or electrical clearance. Supplied to electrical OEMs, EPC contractors, power utilities, and industrial distributors worldwide. Price: US$ 11.50/Kilogram

Stainless steel cup washers and Belleville washers are precision-formed spring elements that apply a controlled, repeatable axial load to a bolted or clamped joint while compensating for thermal expansion, vibration loosening, gasket creep, and material relaxation. Manufactured by precision stamping, coining, and heat-treating of SS 304 and SS 316 spring-grade sheet and strip, these washers are held to close dimensional and load-deflection tolerances for use in safety-critical electrical, structural, and mechanical assemblies where flat washers alone cannot maintain preload.

Stainless Steel Cup Washers & Spherical Seating Washers

SS cup washers, spherical washers, and dished seating washers are precision-pressed from SS 304 and SS 316 strip to provide a concave or convex bearing surface that self-aligns against angled or curved mating surfaces. Used under bolt heads and nuts in structural steelwork, insulator caps, transformer tank fasteners, and outdoor switchgear hardware where perpendicularity between the fastener and clamped surface cannot be guaranteed. Spherical washer pairs (convex-concave sets) accommodate angular misalignment up to 8° without inducing bending stress on the bolt shank.

Belleville Disc Springs (Conical Spring Washers)

Belleville washers, also called conical spring washers or disc springs, are cone-shaped annular discs stamped and heat-treated from SS 301, SS 304, and 17-7 PH spring-grade material to DIN 2093 dimensional series A, B, and C. A single Belleville washer under compression stores elastic energy and maintains bolt preload despite thermal cycling, gasket cold-flow, and vibration — critical in flanged joints, transformer bushings, and busbar connections where connection looseness leads to arcing and overheating.

Curved Washers & Wave Spring Washers

Curved washers and multi-wave spring washers are stamped from SS 304/316 flat strip and formed into a single-wave or multi-wave profile that provides light-to-medium axial spring load with lower stacking height than Belleville washers. Used in bearing preload applications, electrical connector assemblies, panel-mount hardware, and light-duty vibration-damping joints where a Belleville washer’s higher load rate is not required.

Domed Washers for Electrical Insulator & Bushing Assemblies

Domed and cupped SS washers are used extensively under insulator caps, porcelain bushing end fittings, and composite insulator hardware in power transmission and distribution assemblies. The domed profile distributes clamping load evenly across brittle ceramic and composite surfaces, preventing localized stress cracking while maintaining a corrosion-free, non-magnetic contact surface suitable for high-voltage switchyard environments.

Stacked Belleville Washer Packs & Spring Sets

Multiple Belleville washers are supplied pre-assembled in parallel stacks, series stacks, or series-parallel stacks to achieve a specified combination of load and deflection beyond what a single disc spring can provide. Used in high-preload flange joints, heavy machinery mounting, and structural bolted connections in power plants and process facilities where a defined spring rate curve is engineered into the joint design.

High-Temperature & Cryogenic Belleville Washers

SS 316 and Inconel-equivalent Belleville washers are supplied for service from -196°C to 450°C where standard spring steel would lose temper or suffer stress relaxation. Used in LNG plant flanges, furnace assemblies, steam turbine casing joints, and cryogenic pipeline connections where maintained bolt load across extreme temperature swings is essential to joint integrity.

Precision Stamped Washers for Instrumentation Panels

Small-diameter SS cup and Belleville washers from 3 mm to 25 mm OD are precision stamped for instrumentation panel assemblies, PCB mounting hardware, terminal block fasteners, and control cabinet hardware. Tight flatness and load tolerances ensure consistent torque-tension relationships in automated assembly lines for switchgear and control panel OEMs.

Key Features

• Comprehensive range: cup washers, Belleville discs, curved washers, wave washers, and domed washers
• DIN 2093 series A, B, and C dimensional compliance for Belleville springs
• SS 304, SS 316, SS 316L, and 17-7 PH spring-grade material options
• Heat-treated for consistent spring rate and load-deflection characteristics
• Non-magnetic, corrosion-resistant construction suited to outdoor switchyard exposure
• Custom stacking configurations engineered to specified load/deflection curves
• Competitive pricing from US$ 11.50/kg with volume OEM discounts
• EN 10204 3.1 Mill Test Certificates and load test reports available

Spring Rate & Load-Deflection Characteristics

Belleville washer load-deflection behaviour is governed by the ratio of cone height to material thickness, allowing the same washer diameter to be supplied in flat-load, medium-load, or progressive-rate configurations. Engineering calculations follow DIN 2092 for load and stress determination, allowing joints to be designed for a target preload retention over the expected service life and thermal cycling range.

Material Selection: SS 304 vs SS 316 vs 17-7 PH

SS 304 cup and Belleville washers suit general indoor electrical and structural applications with moderate corrosion exposure. SS 316 is specified for coastal switchyards, chemical plant structural bolting, and marine electrical enclosures due to superior chloride resistance. 17-7 PH precipitation-hardening stainless is used where higher spring load retention and fatigue life are required, such as high-vibration machinery mounts and repeated-cycle electrical connectors.

Surface Finish & Corrosion Performance

Standard mill finish, passivated, and electropolished surface options are available. Passivation per ASTM A967 removes free iron contamination from stamping and improves the chromium oxide passive layer, extending service life in humid and coastal switchyard environments. Electropolished finishes are specified for clean-room instrumentation panels and pharmaceutical process equipment.

Series, Parallel & Series-Parallel Stacking Configurations

Belleville washers stacked in parallel (same orientation) increase load capacity while maintaining single-disc deflection; stacked in series (alternating orientation) increases total deflection while maintaining single-disc load. Series-parallel combinations allow engineers to achieve a specific combination of load and travel for flange bolting, coupling preload, and structural anchor bolt applications.

Compliance with DIN 2093 and IS 7443

Belleville disc spring washers are manufactured to DIN 2093 dimensional series and load classification, and cup/spring washers to IS 7443 where specified for Indian utility and railway procurement. Dimensional certificates and load test reports are issued against these standards for EPC project documentation and OEM incoming inspection.

Electrical Insulation Clearance in Switchgear Applications

Domed and cup washers used under insulator hardware and bushing terminals are dimensioned to maintain specified creepage and clearance distances in outdoor switchyard and indoor switchgear assemblies. Non-magnetic SS construction avoids induced eddy current heating in high-current busbar connection hardware.

Technical Specifications

Material Grade & International Equivalents

Product Types / Variants

Applications in Industry

Manufacturing Process

SS strip is blanked and formed on precision presses into flat, cup, or conical profiles, followed by controlled heat treatment to develop the specified spring temper and load-deflection characteristics. Belleville washers undergo edge rounding or grinding of top and bottom bearing edges per DIN 2093 to prevent scoring of mating surfaces. Finished washers are batch load-tested on calibrated compression fixtures, passivated per ASTM A967, and 100% dimensionally inspected before packing. Heat number traceability is maintained from raw coil to finished batch.

Quality Standards & Certifications

• DIN 2093 – Disc springs, dimensions and quality requirements
• DIN 2092 – Disc springs, calculation
• IS 7443 – Spring washers for general engineering purposes
• ASTM A967 – Chemical passivation of stainless steel parts
• ISO 9001:2015 – Quality Management System
• EN 10204 3.1 – Mill Test Certificates

Why Choose Us

• Comprehensive range: cup washers, Belleville discs, wave washers, and custom stacks
• DIN 2093 and IS 7443 compliant manufacturing with load test verification
• SS 304, SS 316, SS 316L, and 17-7 PH spring-grade materials in stock
• Competitive pricing from US$ 11.50/kg with volume OEM discounts
• EN 10204 3.1 MTCs and load test reports with every shipment
• Active export to USA, UK, UAE, Saudi Arabia, Germany, South Korea, Singapore

Frequently Asked Questions

What is the difference between a cup washer and a Belleville washer?
A cup washer has a shallow spherical or dished profile mainly for angular misalignment take-up, while a Belleville washer is a steeper cone-shaped disc spring engineered to a specific load-deflection curve for preload retention.

Which stainless grade is recommended for outdoor switchyard hardware?
SS 316 is recommended for outdoor and coastal switchyard applications due to superior chloride and pitting corrosion resistance compared with SS 304.

Can Belleville washers be supplied as pre-assembled stacks?
Yes. Series, parallel, and series-parallel stacks are supplied pre-assembled to a specified load-deflection requirement.

Do you manufacture to DIN 2093 dimensional series?
Yes. Series A, B, and C Belleville washers are manufactured to DIN 2093 with dimensional and load certification available.

What is the operating temperature range?
SS 304 and SS 316 washers perform from -196°C to 450°C; higher temperature ranges are available with alternate high-temperature alloys.

Are load test certificates available?
Yes. Batch load-deflection test reports and EN 10204 3.1 Mill Test Certificates are supplied with every order.

What sizes are available for instrumentation panel washers?
Precision washers from 3 mm to 25 mm OD are stamped for PCB and terminal block hardware in switchgear and control panel assemblies.

Do you supply non-magnetic washers?
Yes. SS 304 and SS 316 austenitic grades are non-magnetic, suited to high-voltage and instrumentation environments sensitive to induced eddy currents.

Can washers be supplied with electropolished finish?
Yes. Electropolished finish is available for clean-room, pharmaceutical, and food-grade applications requiring low surface roughness.

What is your minimum order quantity?
MOQs vary by size and grade; both project-volume and distributor-stock quantities are supported. Contact us for a specific quotation.

Equivalent Terms in Other Languages

Spanish: Arandela cóncava de acero inoxidable, Arandela Belleville, Arandela cónica de resorte, Arandela ondulada inox

Russian: Шайба тарельчатая из нержавеющей стали, Шайба Беллевиля, Пружинная шайба, Волнистая шайба

French: Rondelle conique inox, Rondelle Belleville, Rondelle bombée acier inoxydable, Rondelle ondulée inox

Portuguese: Arruela côncava de aço inox, Arruela Belleville, Arruela cônica de mola, Arruela ondulada inox

Italian: Rondella concava in acciaio inox, Rondella Belleville, Rondella conica a molla, Rondella ondulata inox
