Stainless Steel Hex Nuts DIN 934

Category: Tags: , ,

Description

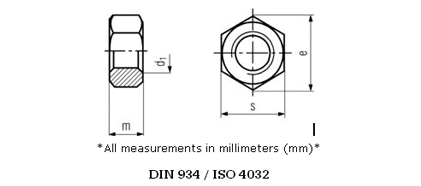

hexagon-nut-2

DIN 934 / ISO 4032
d1 s e m
M1 2.5 2.72 0.8
M1.2 3 3.29 1
M1.4 3 3.29 1.2
M1.6 3.2 3.48 1.3
M1.7 3.5 3.82 1.4
M2 4 4.32 1.6
M2.3 4.5 4.95 1.8
M2.5 5 5.45 2
M2.6 5 5.51 2
M3 5.5 6.01 2.4
M3.5 6 6.01 2.8
M4 7 7.66 3.2
M5 8 8.76 4
M6 10 11.05 5
M7 11 12.12 5.5
M8 13 14.38 6.5
M10 17 18.9 8
M12 19 21.1 10
M14 22 24.49 11
M16 24 26.75 13
M18 27 29.56 15
M20 30 32.95 16
M22 32 35.03 18
M24 36 39.55 19
M27 41 45.2 22
M30 46 50.85 24
M33 50 55.37 26
M36 55 60.79 29
M39 60 66.44 31
M42 65 71.3 34
M45 70 76.95 36
M48 75 82.6 38
M52 80 88.25 42
M56 85 95.07 45
M60 90 100.72 48
M64 95 106.37 51
M68 100 112.02 54
M72 105 117.67 58
M76 110 123.32 61
M80 115 128.97 64
M85 120 133.11 68
M90 130 145.77 72
M95 135 151.42 76
M100 145 162.72 80
M105 150 168.37 84
M110 155 174.02 88
M115 165 185.32 92
M120 170 190.97 96
M125 180 202.27 100
M130 185 207.75 104
M135 190 213.40 108
M140 200 224.70 112
M145 210 236 116
M150 210 236 120
