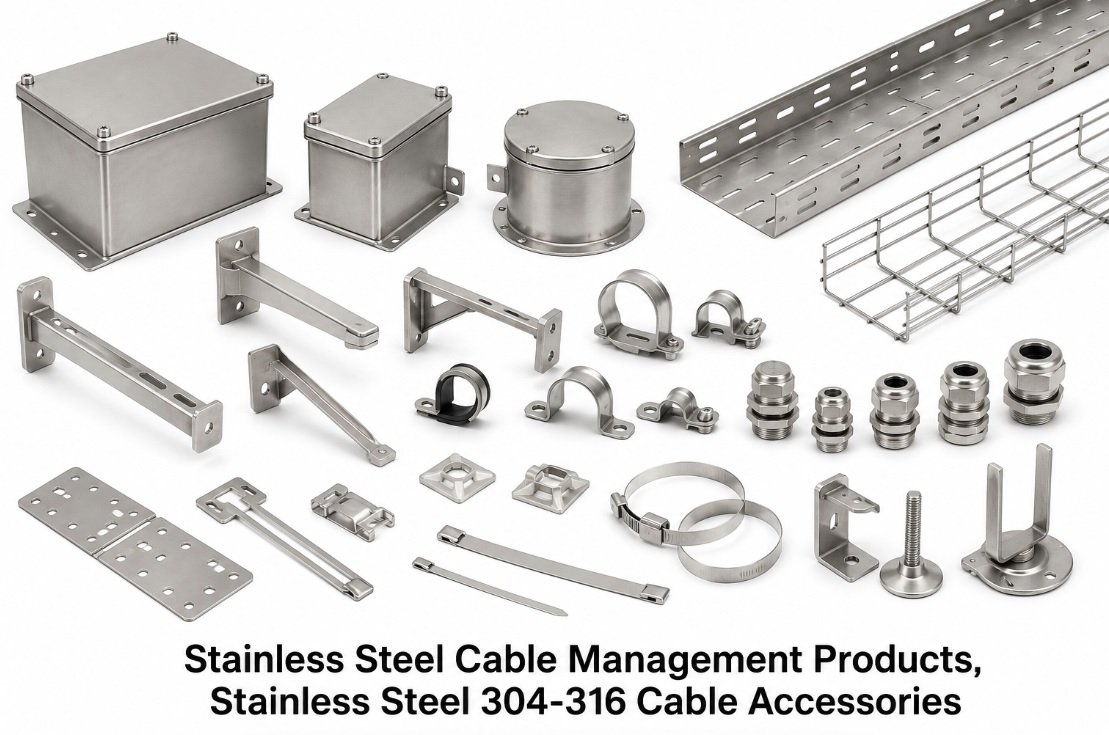

Stainless Steel Cable Management Accessories – Manufacturer & Exporter India
Stainless Steel Fittings India manufactures a comprehensive range of stainless steel cable management accessories including cable tray brackets, cable tray support brackets, conduit clamps, cable saddles, wire saddles, cable entry plates, cable tie mounting bases, cable gland plates, cable segregation barriers, conduit support clips, and multi-cable transit frames in SS 201, SS 304, SS 316, SS 316L, and SS 430. Produced by pressing, stamping, laser cutting, CNC bending, and roll forming of SS sheet, these components support the installation and organisation of electrical cables, instrumentation tubing, and conduit runs in offshore platforms, petrochemical plants, power generation facilities, food processing factories, pharmaceutical facilities, and electrical OEM assemblies. Price: US$ 11.60/Kilogram.
Product Overview
Stainless steel cable management accessories replace galvanised steel and carbon steel equivalents in environments where corrosion, chemical exposure, temperature extremes, or hygiene requirements make standard materials inadequate. SS 316 cable tray brackets and conduit clamps are mandatory in offshore oil and gas topsides, coastal installations, desalination plants, marine vessels, and chemical processing areas where chloride-induced corrosion would rapidly compromise galvanised fittings. In food processing and pharmaceutical facilities, SS 304 and SS 316 cable management components eliminate the risk of zinc or chromate coating contamination from corroding galvanised hardware reaching product contact areas.
SS Cable Tray Support Brackets & Cantilever Arms
Stainless steel cable tray support brackets, cantilever arms, wall brackets, floor-standing cable tray supports, trapeze brackets, and back-to-back cable tray support frames are pressed and CNC-bent from SS 304 and SS 316 sheet and plate in thicknesses from 2 mm to 6 mm. Supplied for unistrut (channel section) mounting, direct wall bolting, or welded structural steel attachment. Load capacities from 25 kg to 250 kg per bracket depending on arm length, bracket profile, and sheet thickness. Slot-adjustable designs allow post-installation height adjustment for trays installed before final cable loading is determined. Manufactured per IEC 61537 cable tray support requirements.
SS Conduit Clamps, Clips & Saddles
Single-hole conduit clamps, two-hole conduit saddles, U-bolt conduit clamps, conduit spacer bars, conduit hanger straps, and conduit fixing clips are press-formed from SS 304 and SS 316 strip and sheet for conduit sizes from 16 mm to 100 mm OD. Available for EMT, IMC, rigid metal conduit, and flexible conduit systems. SS conduit clamps comply with IEC 60614-2 conduit fitting standards and NEMA standards for metallic conduit support. Used in offshore electrical installations, marine conduit systems, food factory conduit runs, and pharmaceutical GMP electrical installations where BS 7671 Wiring Regulations require corrosion-resistant fixings in Zone B and Zone C environments.
SS Cable Saddles & Wire Bundle Saddles
Stainless steel cable saddles, multi-cable bundle saddles, instrumentation cable saddles, wire harness saddles, and coaxial cable saddles are stamped from SS 304 and SS 316 strip for cable outside diameters from 6 mm to 100 mm. Supplied with EPDM or neoprene cushion lining to prevent cable jacket damage and provide vibration isolation. Saddle clamps for small-bore instrumentation tubing (6 mm to 25 mm OD) anchor instrument signal cables, pneumatic tube bundles, and thermocouple extension cables in compact, vibration-resistant multi-cable fixing systems. Compatible with standard M6, M8, and M10 SS fasteners and channel-nut mounting systems.
SS Cable Entry & Gland Plates
Stainless steel cable gland plates, enclosure entry plates, bulkhead entry frames, cable transit plates, multi-cable penetration frames, and blanking plates are laser-cut and press-formed from SS 304 and SS 316 sheet for electrical enclosures, junction boxes, control panels, and bulkhead penetrations. Pre-punched for standard metric and NPT cable gland sizes M16 to M63; custom hole patterns for project-specific gland configurations are laser-cut without additional tooling cost. Used in offshore junction boxes, motor control centre cable entries, food factory electrical enclosures, and pharmaceutical facility control panels where sealed cable entry is required for IP65/IP66/IP67 ingress protection.
SS Cable Tie Mounting Bases & Adhesive-Free Fixings
Stainless steel cable tie mounting bases, screw-fixed tie mounts, cable tie anchors, cable tie edge clips, and weld-on cable tie bases provide corrosion-resistant anchor points for SS cable ties in marine, offshore, and process plant electrical installations. Unlike plastic adhesive cable tie bases that fail in oil, chemical, and high-temperature environments, SS mounting bases provide permanent, maintenance-free cable tie fixing points. Manufactured from SS 304 and SS 316 sheet in pressed and laser-cut forms; supplied with SS 316 A4 stainless machine screws. Compatible with all standard stainless steel cable tie widths (4.6 mm, 7.0 mm, 9.0 mm).
SS Cable Segregation Barriers & Tray Dividers
Stainless steel cable tray segregation barriers, tray lane dividers, earthing bars for cable trays, cable tray cover clips, cable tray splice connectors, and tray splice plates are pressed and punched from SS 304 and SS 316 sheet for IEC 61537 and NEMA VE-1 cable tray system completion. Segregation barriers divide cable tray sections into separate lanes for power, control, instrumentation, and data cables — maintaining electromagnetic separation distances and circuit segregation as required by IEC 60364, BS 7671, and NEC Article 392. SS tray earth bonding straps and earth continuity connectors maintain earth continuity across tray sections in TN-S and TN-C-S earthing systems.
SS Multi-Cable Transit Frames & Sealing Systems
Stainless steel multi-cable transit (MCT) frames, bulkhead transit plates, fire-rated cable transit frames, and watertight cable penetration systems are pressed and laser-cut from SS 316 for fire-rated bulkhead penetrations, watertight deck penetrations on marine vessels, pressure boundary penetrations in offshore modules, and blast-rated wall penetrations in petrochemical facilities. SS MCT frames hold modular sealing bricks (intumescent, silicone, or EPDM elastomer) that maintain fire resistance, gas tightness, and watertight integrity at cable penetrations — critical life-safety applications in offshore, marine, and process plant electrical installations.
Key Features
- Full SS grade range: 201, 304, 304L, 316, 316L, 430 — grade matched to corrosion duty
- Manufactured to IEC 61537, NEMA VE-1, IEC 60614-2, and BS 7671 standards
- Cable tray brackets: load capacity 25–250 kg; slot-adjustable for post-installation alignment
- Conduit clamps: 16 mm to 100 mm OD; all conduit types — EMT, IMC, rigid, flexible
- EPDM/neoprene lined saddles for cable jacket protection and vibration isolation
- Custom cable gland plate hole patterns: laser-cut, no tooling charge
- SS cable tie mounting bases: permanent, maintenance-free fixing in oil/chemical environments
- Segregation barriers, splice plates, and earth bonding straps for complete tray systems
- SS 316 A4 fasteners (nuts, bolts, washers) standard — full SS assembly, no mixed metals
- EN 10204 3.1 MTCs and dimensional inspection reports with every shipment
Corrosion Resistance in Offshore & Marine Environments
Offshore oil and gas topsides present the most demanding corrosion environment for cable management hardware: marine atmosphere with high chloride levels, occasional seawater splash, H2S-containing process gas leaks, and elevated temperatures from sun heating of exposed structures. SS 316 cable tray brackets and conduit clamps with PREN (Pitting Resistance Equivalent Number) > 24 provide corrosion resistance suitable for Zone 1 and Zone 2 ATEX hazardous area electrical installations on offshore platforms. All-SS assemblies — SS 316 brackets with SS A4 bolts, nuts, and washers — eliminate galvanic corrosion at contact points between dissimilar metals, a common failure mode in galvanised and painted carbon steel cable management systems in marine environments.
Food & Pharmaceutical GMP Compliance
In food processing and pharmaceutical facilities, electrical cable management hardware above and around production areas is subject to food safety regulation and GMP audit scrutiny. Corroding galvanised cable clips, flaking paint from painted cable tray supports, and zinc coating contamination from deteriorating fixings are all documented product safety hazards. SS 304 and SS 316 cable management accessories with passivated or electropolished surfaces eliminate corrosion-related contamination risk, provide cleanable surfaces for decontamination during facility washdowns, and satisfy BRCGS Food Safety, IFS Food, SQF, and pharmaceutical cGMP facility audit requirements for corrosion-resistant overhead electrical installations.
Vibration-Resistant Cable Support
Offshore platforms, marine vessels, compressor stations, and rotating machinery installations subject cable runs to continuous low-frequency vibration that causes fatigue failure of inadequately supported cables. SS cushion-lined cable saddles, spring-mount cable clamps, and rubber-isolated conduit supports damp vibration transmission between cable and structure, preventing vibration-induced insulation damage and termination fatigue failures. SS saddle clamps with EPDM lining provide the combination of corrosion resistance and vibration isolation required by DEP (Shell Design and Engineering Practice) and ISO 13703 pipeline and process plant cable installation standards.
IEC & NEMA Standards Compliance
Cable tray support systems in industrial electrical installations must comply with IEC 61537 (Cable tray systems), NEMA VE-1 (Metallic cable tray systems), and project-specific engineering specifications. Our SS cable tray brackets are designed with standard Unistrut/strut channel compatible fixing slots, standard hole patterns for back-to-back and cantilever installation, and load ratings calculated per IEC 61537 Annex A static load test methods. Dimensional compliance with standard cable tray widths (50, 75, 100, 150, 200, 300, 400, 500, 600 mm per IEC 61537) ensures compatibility with standard tray sections from major cable tray manufacturers.
Complete All-SS Assembly Supply
Galvanic corrosion at the contact point between SS brackets and zinc-plated or HDG carbon steel fasteners is a common failure mode in offshore and marine installations. Stainless Steel Fittings India supplies all cable management accessories as complete SS assemblies — SS 316 bracket body with SS A4 (SS 316) hex head bolts, hex nuts, flat washers, and spring washers included — eliminating bimetallic contact and the associated galvanic cell that accelerates zinc coating dissolution. Project specifications for offshore and chemical plant electrical installations increasingly require all-SS cable management assemblies to meet 25-year design life requirements without replacement during planned maintenance intervals.
Custom Project-Specific Components
Electrical EPC contractors and offshore platform topsides electrical engineering teams frequently require project-specific cable management components — custom cantilever arm lengths, non-standard tray widths, project-specific cable gland plate configurations, and fabricated cable management structures. Stainless Steel Fittings India provides custom fabrication from DWG/DXF drawings with engineering support for load calculations, standard selection, and material certification. Batch traceability with heat number records from SS coil to finished bracket supports project Material Take-Off (MTO) and QC documentation requirements for offshore and petrochemical projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturing Processes | Pressing, Laser Cutting, CNC Bending, Punching, Roll Forming, TIG Welding |
| Material Grades | SS 201, 304, 304L, 316, 316L, 430 |
| Sheet Thickness Range | 1.5 mm – 8 mm depending on component type and load |
| Cable Tray Bracket Load | 25 kg – 250 kg per bracket (arm length dependent) |
| Conduit Clamp Range | 16 mm – 100 mm OD (EMT, IMC, rigid, flexible conduit) |
| Cable Saddle Range | 6 mm – 100 mm cable/tube OD |
| Gland Plate Holes | M16 – M63 metric; NPT ½″ – 2″; custom laser-cut |
| Fasteners | SS 316 A4 hex head bolts, nuts, washers (standard) |
| Surface Finish | 2B, No.4, Passivated, Electropolished |
| Liner Materials | EPDM, Neoprene, Nylon (saddles and lined clamps) |
| Standards | IEC 61537, NEMA VE-1, IEC 60614-2, BS 7671, ISO 9001:2015 |
| Price | US$ 11.60 / Kilogram |
Material Grades & International Equivalents
| Grade | UNS | EN / W.Nr. | DIN | JIS | BS | AISI |
|---|---|---|---|---|---|---|
| SS 201 | S20100 | 1.4372 | X12CrMnNiN17-7-5 | SUS 201 | — | AISI 201 |
| SS 304 | S30400 | 1.4301 | X5CrNi18-10 | SUS 304 | 304S31 | AISI 304 |
| SS 304L | S30403 | 1.4307 | X2CrNi18-9 | SUS 304L | 304S11 | AISI 304L |
| SS 316 | S31600 | 1.4401 | X5CrNiMo17-12-2 | SUS 316 | 316S31 | AISI 316 |
| SS 316L | S31603 | 1.4404 | X2CrNiMo17-12-2 | SUS 316L | 316S11 | AISI 316L |
| SS 430 | S43000 | 1.4016 | X6Cr17 | SUS 430 | 430S17 | AISI 430 |
Product Types & Variants
| Type | Description | Key Applications |
|---|---|---|
| Cable Tray Brackets | Cantilever arms, wall brackets, trapeze brackets | Cable tray support, IEC 61537 systems |
| Conduit Clamps & Saddles | Single/two-hole, U-bolt, saddle types | Conduit fixing, EMT/IMC/rigid conduit |
| Cable Saddles / Wire Saddles | Single & multi-cable saddle clamps with liner | Instrumentation, signal, power cable support |
| Cable Gland Plates | Pre-punched or laser-cut entry plates | Enclosure cable entry, IP65–IP68 panels |
| Cable Tie Mounting Bases | Screw-fixed SS tie anchor points | Marine, offshore, process plant cable ties |
| Tray Segregation Barriers | Lane dividers, earthing bars, splice plates | IEC circuit segregation, EM separation |
| MCT Frames | Multi-cable transit frames for fire/gas sealing | Offshore bulkheads, marine deck penetrations |
| Custom Fabricated Components | Project-specific cable management structures | Offshore EPC, petrochemical, power plant projects |
Industry Applications
| Industry | Application |
|---|---|
| Oil & Gas / Offshore | Topside cable tray brackets, Zone 1/2 ATEX conduit clamps, subsea cable saddles, MCT frames |
| Petrochemical | Process area conduit supports, ATEX-zone cable fixings, corrosion-resistant cable tray accessories |
| Power Generation | Control room cable management, turbine hall conduit systems, generator building cable tray supports |
| Food & Beverage | GMP-compliant SS cable fixings, food factory conduit clamps, production area cable saddles |
| Pharmaceutical / Biotech | Cleanroom cable tray supports, cGMP cable management, electropolished cable accessories |
| Marine / Shipbuilding | Vessel cable saddles, bulkhead MCT frames, deck conduit clamps, accommodation cable fixings |
| Electrical OEM | Panel cable gland plates, enclosure cable entry, harness saddles, PCB cable tie bases |
| Data Centre / Telecoms | Server room cable tray brackets, SS conduit clamps, overhead cable management supports |
Manufacturing Process
SS sheet and strip coil are received with EN 10204 3.1 MTCs and slit to required widths. Blanks are cut by CNC laser cutting or punching presses. Cable tray brackets and conduit saddles are press-formed and CNC-bent to profile from SS sheet. Slot patterns, mounting holes, and cutouts are CNC-punched or laser-cut to drawing dimensions. Cable gland plates are laser-cut with gland hole patterns per customer specifications. TIG welding joins multi-piece assemblies (trapeze brackets, MCT frames, fabricated cable support structures). Post-forming passivation per ASTM A967 restores the chromium oxide passive layer on all cut and formed surfaces. Electropolishing per ASTM B912 is applied for food, pharmaceutical, and architectural grade components. SS A4 fastener hardware is assembled to brackets where specified. Final dimensional inspection, batch tagging, and packing complete the process. All batches carry heat number traceability from SS coil MTCs to finished component documentation.
Quality Standards & Certifications
- ISO 9001:2015 – Quality Management System
- IEC 61537 – Cable tray systems and cable ladder systems
- NEMA VE-1 – Metallic cable tray systems
- IEC 60614-2 – Conduit systems for electrical installations
- BS 7671 (IET Wiring Regulations) – Requirements for electrical installations
- ASTM A240 / A480 – SS sheet and strip standards
- EN 10088-2 – European SS flat products
- ASTM A967 – Chemical Passivation of Stainless Steel
- EN 10204 3.1 – Mill Test Certificates
- ISO 9227 – Neutral Salt Spray (NSS) corrosion test
Why Choose Stainless Steel Fittings India
- Complete SS cable management range — tray brackets, conduit clamps, saddles, gland plates, MCT frames
- SS 316 A4 full-SS assemblies — no mixed metals, no galvanic corrosion at fixing points
- IEC 61537, NEMA VE-1, and BS 7671 compliant products
- Custom cable gland plates and project-specific fabrications — laser cut, no tooling charge
- Load-rated tray brackets: engineering calculations and load test certificates available
- EN 10204 3.1 MTCs and dimensional inspection reports with every order
- Competitive pricing from US$ 11.60/kg; project volume and OEM programme discounts
- 25+ years export experience to USA, UK, UAE, Germany, Australia, Singapore, Canada
Frequently Asked Questions
What SS grade should I specify for offshore cable tray brackets?
SS 316 (1.4401) or SS 316L (1.4404) is the standard specification for offshore topsides cable management accessories. PREN > 24 from the 2–3% molybdenum content provides resistance to marine atmosphere, chloride pitting, and H2S exposure. All fasteners should also be SS A4 (SS 316) to avoid galvanic corrosion at contact points.
Are your cable tray brackets load-rated?
Yes. Cable tray brackets are sized and load-rated per IEC 61537. Load capacities from 25 kg to 250 kg per bracket are available depending on cantilever arm length and sheet thickness. Engineering load calculations and load test certificates are available on request for project engineering documentation.
Can you supply custom cable gland plate hole patterns?
Yes. Cable gland plates are laser-cut to any hole pattern — metric (M16 to M63), NPT, PG thread, or bespoke project-specific patterns — without tooling charges. Submit DXF/DWG files or gland layout drawings for instant quotation and rapid production. Standard lead time is 2–3 weeks from drawing approval.
Do you supply SS cable ties to work with SS mounting bases?
Yes. SS 316 stainless steel cable ties in widths 4.6 mm, 7.0 mm, and 9.0 mm are available as a complementary product. SS cable tie and SS mounting base combinations provide a fully stainless, maintenance-free cable securing system suitable for offshore, marine, and aggressive chemical environments.
Are these products suitable for ATEX Zone 1 and Zone 2 applications?
Yes. SS cable management accessories are inherently non-sparking and suitable for Zone 1 and Zone 2 ATEX classified areas, subject to the overall electrical installation design. They do not require ATEX certification in themselves as passive mechanical support components. Material and construction certifications are provided for incorporation into ATEX-certified electrical installation documentation packages.
What is the difference between conduit clamps and cable saddles?
Conduit clamps secure rigid metallic conduit (EMT, IMC, rigid) and flexible conduit to structures; they are dimensioned to conduit OD and provide rigid fixing. Cable saddles secure flexible cables and cable bundles with a cushion-lined contact to prevent cable jacket damage; they accommodate a range of cable ODs and provide vibration isolation through the EPDM or neoprene lining.
Can you supply complete cable tray systems or only accessories?
We manufacture cable tray support accessories (brackets, clamps, saddles, gland plates, segregation barriers). Cable tray sections (solid bottom, perforated, ladder) are a separate but related product range — please contact our sales team for availability. Complete cable management system supply including tray, brackets, and all accessories is possible for project orders.
Do you supply mill test certificates?
Yes. EN 10204 3.1 Mill Test Certificates for raw SS sheet and strip material are supplied with every order. Dimensional inspection reports are available for all products. For project applications requiring full material traceability, heat number records from coil MTC to finished component are maintained and available on request.
