Name: Stainless Steel Straight Type
SKU: 836
Availability: InStock

Description

Stainless Steel Straight Type

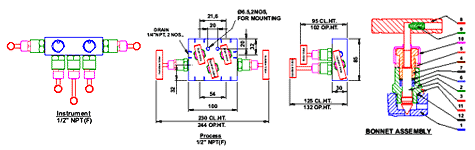

NO	DESCRIPTION	QTY	MATERIAL
1	BODY	1	SS 316
2	BONNET	1	SS 316
3	STEM	1	SS 316
4	BONNET PUSHER	1	SS316
5	LOCK NUT	1	SS 316
6	PACKING	1	TEFLON
7	WASHER	1	SS 316
8	HANDLE	1	SS 304
9	GRUB SCREW	1	SS
10	DUST CAP	1	PLASTIC
11	LOCKING PIN	1	SS 304
12	BONNET SEAL	1	TEFLON

FEATURES :
5 VALVE MANIFOLDS (STRAIGHT TYPE)
5 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2″ NPT(F) and Instrument side 1/2″ NPT(F) Connecting system impulse lines and transmitters, having simple five valves configuration which allows for easy two block or Isolate, two, one Bleed or Vent valve calibration of a static pressure transmitter or gauge. Bleed/vent connection with s.s. plug will be provided on request. Approximate weight : xxx Kg (xxx Lbs.). Heat code traceability
BONNET ASSEMBLY
Screwed bonnet design. Bonnet-back seated blow out proof. Spindle – Ground and thread rolled. Spindle tip-Non rotating tip shut off type – stellited, Regulating-stellited and soft seated. Bonnet pusher – silver plated for anti galling freezing for increased stem cycle life. Dust cap protects stem threads from externals contamination. Leak tight seal with low operating torque.
