Brass Hose Jointers / Connectors – Hose Menders & Splices Manufacturer in India
Stainless Steel Fittings India is a leading manufacturer and exporter of Brass Hose Jointers, Brass Hose Connectors, Brass Hose Menders, and Brass Hose Splices. Our brass hose fittings are precision-machined from high-quality brass alloys to deliver leak-proof, corrosion-resistant performance in pneumatic, hydraulic, water, gas, and fuel hose systems. Available in a wide range of sizes and grades, these fittings comply with international standards including BS 2872 and are widely used across industrial, commercial, and residential applications.
Price: ₹11.90/Kg (ex-works, India). Bulk pricing available – contact us for a custom quote.

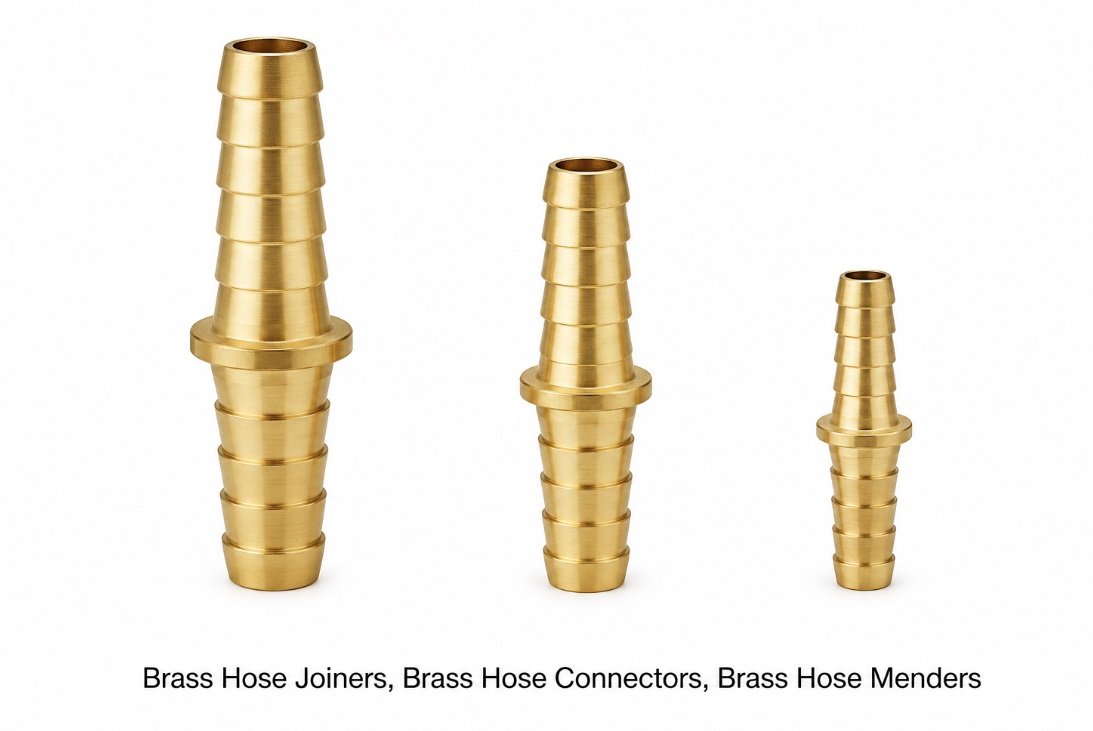

What Are Brass Hose Jointers / Connectors?
Brass hose jointers (also known as hose menders, hose connectors, or hose splices) are fittings used to join two hose ends together in a straight-line configuration. They feature barbed ends that grip the inner bore of rubber or PVC hoses securely, preventing blow-off under pressure. The barbed design creates a mechanical seal without the need for additional sealants, making installation fast and reliable. These fittings are essential wherever hose runs need to be extended, repaired, or connected to pipelines and equipment.
Brass Grades Available
We manufacture brass hose jointers and connectors in the following internationally recognized brass grades:
| Grade / Standard | Composition | Properties | Applications |
|---|---|---|---|
| BS 2872 CZ 112 (Free Cutting Brass) | Cu 57–59%, Pb 2.5–3.5%, Zn Balance | Excellent machinability, good corrosion resistance | General plumbing, pneumatics, water fittings |
| IS 319 Grade 1 (Free Cutting Brass) | Cu 60–63%, Pb 2.5–3.7%, Zn Balance | High machinability, good strength | Industrial hose fittings, turned components |
| ASTM B16 C36000 (Free Cutting Brass) | Cu 60–63%, Pb 2.5–3.7%, Zn Balance | Highest machinability rating (100%), excellent ductility | OEM components, precision fittings |
| DIN CuZn39Pb3 (CW614N) | Cu ~58%, Pb 2.5–3.5%, Zn Balance | Superior machinability, good pressure resistance | European standard hydraulic & pneumatic fittings |
| Naval Brass (BS 2874 CZ 112) | Cu 59–62%, Sn 0.5–1.5%, Pb ≤0.2%, Zn Balance | High seawater corrosion resistance | Marine, offshore, coastal hose systems |
Brass Hose Jointer Size Chart
We supply brass hose jointers and connectors in the following standard sizes. Custom sizes available on request.
| Hose ID (Inches) | Hose ID (mm) | OD of Barb (mm) | Overall Length (mm) | Working Pressure (Bar) |
|---|---|---|---|---|
| 3/16″ | 4.8 mm | 6.0 mm | 38 mm | 20 Bar |
| 1/4″ | 6.4 mm | 8.0 mm | 42 mm | 18 Bar |
| 5/16″ | 7.9 mm | 9.5 mm | 46 mm | 16 Bar |
| 3/8″ | 9.5 mm | 11.5 mm | 50 mm | 15 Bar |
| 1/2″ | 12.7 mm | 15.0 mm | 56 mm | 12 Bar |
| 5/8″ | 15.9 mm | 18.5 mm | 62 mm | 10 Bar |
| 3/4″ | 19.0 mm | 22.0 mm | 68 mm | 10 Bar |
| 1″ | 25.4 mm | 29.0 mm | 80 mm | 8 Bar |
| 1-1/4″ | 31.8 mm | 36.0 mm | 90 mm | 6 Bar |
| 1-1/2″ | 38.1 mm | 43.0 mm | 100 mm | 6 Bar |
| 2″ | 50.8 mm | 56.0 mm | 120 mm | 5 Bar |
Brass Hose Jointer – Thread Size Table
Threaded variants of brass hose jointers are available in metric and BSP thread sizes as listed below:
| Thread Type | Thread Size | Equivalent Hose Size |
|---|---|---|
| Metric (M) | M4, M5, M6, M8, M10, M12, M14 | 3 mm – 12 mm ID |
| BSP (British Standard Pipe) | 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″ | 6 mm – 25 mm ID |
| NPT (National Pipe Thread) | 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″ | 6 mm – 25 mm ID |
Key Features & Benefits
- Material: Free-cutting brass (BS 2872 CZ 112 / IS 319 / ASTM B16 C36000)
- Finish: Natural brass, electro-tin plated, chrome plated, or nickel plated
- Design: Double-ribbed / multi-barbed ends for superior grip on rubber, PVC, and silicone hoses
- Pressure Rating: Up to 20 Bar depending on size
- Temperature Range: -20°C to +120°C
- Standards: Manufactured to BS 2872, IS 319, DIN, and ASTM specifications
- Applications: Pneumatics, hydraulics, water supply, gas lines, fuel lines, air compressors, garden hoses, automotive
- Certifications: ISO 9001:2015 quality management system
- MOQ: Low minimum order quantities; bulk orders welcome
- Lead Time: Ready stock for standard sizes; custom sizes in 2–4 weeks
Product Specifications Summary
| Product Name | Brass Hose Jointers / Connectors / Menders / Splices |
| Material | Brass – BS 2872 CZ 112, IS 319, ASTM B16 C36000, DIN CW614N |
| Available Sizes | 3/16″ to 2″ (4.8 mm to 50.8 mm Hose ID) |
| Threads | M4 to M14 (Metric), 1/8″ to 1″ BSP / NPT |
| Finish | Natural, Electro-Tin, Chrome, Nickel Plated |
| Working Pressure | Up to 20 Bar |
| Temperature Range | -20°C to +120°C |
| Price | ₹11.90/Kg (Ex-works India) |
| Standards | BS 2872, IS 319, ASTM B16, DIN, ISO 9001:2015 |
| MOQ | As per customer requirement |
Frequently Asked Questions (FAQ)
Q1. What is a brass hose jointer used for?
A: A brass hose jointer is used to connect two pieces of hose together in a straight line. It is also called a hose mender, hose connector, or hose splice. It is commonly used to repair a cut or damaged hose or to extend the length of an existing hose run in pneumatic, hydraulic, water, and gas systems.
Q2. What brass grade is best for hose jointers?
A: BS 2872 CZ 112 (free-cutting brass) is the most widely used grade for hose jointers due to its excellent machinability, good corrosion resistance, and cost-effectiveness. For marine or high-humidity environments, naval brass (CZ 112 with tin addition) is recommended. For OEM applications or export orders, ASTM B16 C36000 is the standard.
Q3. What sizes of brass hose jointers are available?
A: We supply brass hose jointers from 3/16″ (4.8 mm) up to 2″ (50.8 mm) hose ID. Custom sizes beyond standard range are also available. Please contact us with your technical drawing or specifications.
Q4. What is the price of brass hose jointers?
A: The price of brass hose jointers starts at ₹11.90/Kg (ex-works, India). Final pricing depends on grade, size, finish, quantity, and delivery terms. Please contact us for a detailed quotation.
Q5. What finishes are available for brass hose connectors?
A: Brass hose connectors are available in natural/plain brass finish, electro-tin plated, chrome plated, and nickel plated finishes. Plated finishes improve corrosion resistance and are preferred in food-grade, marine, and high-humidity applications.
Q6. Are your brass fittings RoHS compliant?
A: Yes, our brass hose jointers and connectors are manufactured using RoHS-compliant brass alloys. Lead-free brass variants are available on request for drinking water and food-grade applications.
Q7. Do you export brass hose fittings internationally?
A: Yes, we export brass hose jointers, connectors, and menders to countries including the UAE, UK, USA, Europe, Australia, and Southeast Asia. We offer competitive export pricing with FOB, CIF, and DDP delivery terms.
Q8. Can you supply stainless steel hose jointers as well?
A: Yes. We also manufacture hose jointers and connectors in Stainless Steel 304 and 316 grades for applications requiring higher corrosion resistance, higher temperature tolerance, or compliance with food and pharmaceutical standards.
Why Choose Stainless Steel Fittings India for Brass Hose Jointers?
With over a decade of manufacturing experience, Stainless Steel Fittings India delivers precision-machined brass hose fittings backed by strict quality control and competitive pricing. Our in-house CNC machining and surface finishing capabilities ensure consistent product quality across every batch. We cater to OEMs, distributors, engineering contractors, and traders with flexible MOQs, fast lead times, and comprehensive technical support. Whether you need standard catalogue sizes or custom engineered fittings, we are your reliable manufacturing partner in India.
