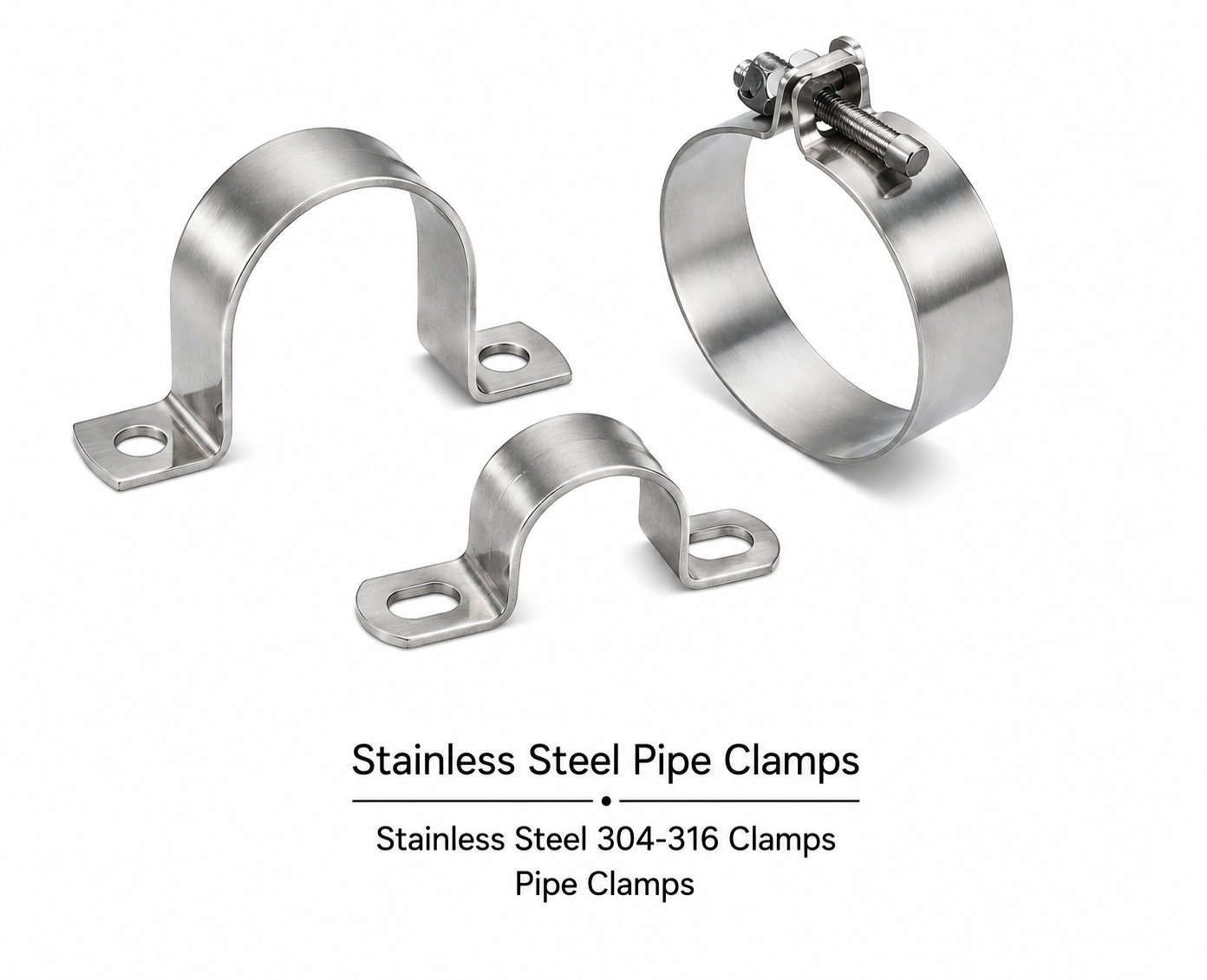

Stainless Steel Pipe Clamps – Manufacturer, Supplier & Exporter India

Stainless Steel Fittings India manufactures a comprehensive range of stainless steel pipe clamps including U-bolt clamps, split-ring clamps, heavy-duty two-bolt clamps, single-bolt repair clamps, worm-drive hose clamps, loop clamps, insulated pipe clamps, and DIN 3016 clamps in SS 304, SS 316, and SS 316L grades. Designed for process piping, offshore structures, shipbuilding, HVAC, power generation, and plumbing systems where carbon steel or galvanised clamps are inadequate. Supplied to EPC contractors, process plant OEMs, shipyards, and industrial distributors globally. Price: US$ 10.90/Kilogram

Product Overview – Stainless Steel Pipe Clamps

Stainless steel pipe clamps are structural and positional fastening components that secure pipes, tubes, hoses, and conduits to supporting structures. Manufactured by press forming, roll forming, deep drawing, and precision punching of SS 304 and SS 316 sheet and strip, pipe clamps provide vibration-resistant, corrosion-proof pipe securing in environments where regular maintenance access is limited or impossible.

U-Bolt Pipe Clamps & Square Bend U-Bolts

SS U-bolt clamps, J-bolt clamps, square-bend U-bolts, and round-bend U-bolts are press-formed and threaded in SS 304/316 for pipe sizes DN15 (1/2″) to DN300 (12″). Supplied with hex nuts, flat washers, and backing plates as complete clamp assemblies. Used in marine, offshore, petrochemical, and structural pipe installations. Cold-forged threads for consistent engagement and clamp torque retention.

DIN 3016 / DIN 3567 Heavy Pipe Clamps

DIN 3016 heavy-duty pipe clamps, DIN 3567 heavy-duty pipe clips, and metric-series SS pipe holders with rubber liner inserts (NBR, EPDM, silicone) are press-formed and assembled to DIN dimensional standards. Used in German-standard process plants, automotive, marine, and industrial machinery. Available in M6, M8, and M10 bolt sizes with metric thread. EPDM or NBR rubber linings reduce vibration transmission and prevent bimetallic corrosion between SS clamp and dissimilar pipe material.

Worm-Drive Hose Clamps & Band Clamps

All-SS 304 and SS 316 worm-drive hose clamps, heavy-band clamps, T-bolt clamps, and perforation band clamps are roll-formed from SS strip with solid SS housings and SS screws. Bandwidth from 9 mm to 25 mm; diameter range 8 mm to 440 mm. Used for hose connections, flexible pipe joints, exhaust joints, silicone hose assemblies, and rubber boot clamps in automotive, marine, and process applications. Compliant with ISO 3722 and SAE J1670.

Loop Clamps & Single-Bolt Cushion Clamps

Single-bolt SS loop clamps with PVC, EPDM, or rubber cushion lining are used for small-bore tubing, hydraulic lines, instrumentation tubing, and electrical conduit securing in aerospace, shipboard, and process control applications. Sizes range from 6 mm to 50 mm OD. Loop clamp bodies are precision-stamped from SS 304/316 strip and comply with BS, DIN, and NAS standards for aircraft and marine use.

Two-Bolt Split Ring Pipe Clamps

Two-bolt heavy-duty split-ring clamps, half-saddle clamps, and full-ring pipe clamps are press-formed in SS 304/316 for pipe sizes DN25 to DN200. Used in process plant pipe repair, pipe anchoring, and lateral load support where single-bolt U-bolts are insufficient. Supplied with zinc-plated MS or full-SS fasteners as specified. Inner rubber lining options available for vibration absorption and surface protection.

Insulated Pipe Clamps & Cryogenic Clamps

Thermally insulated pipe clamps with phenolic, polyurethane foam, or Rohacell insulation inserts are manufactured for chilled water, refrigeration, LNG, and cryogenic service. Cold bridge prevention is critical in these applications — the SS outer shell is separated from the cold pipe surface by a high-density insulation liner. Used in LNG plants, cold storage facilities, and air-conditioning systems.

Key Features

• Material: SS 304, 316, 316L for body; SS fasteners (nuts, bolts, washers) standard
• Pipe size range: DN6 (1/4″) to DN300 (12″) — custom beyond this range
• Standards: DIN 3016, DIN 3567, BS 3974, MSS SP-69, ISO 3722, SAE J1670
• Liner options: EPDM, NBR, silicone, neoprene, PTFE, phenolic foam, PVC
• Surface: 2B, No.4, passivated, electropolished
• Full-SS clamp assemblies (body + fasteners) available — no mixed metals
• Load tested assemblies; test certificates available for safety-critical applications
• Export packaging: individual poly-bag, bulk carton, or kit assembly packs

Corrosion Resistance & Material Selection

SS 304 pipe clamps resist atmospheric corrosion, freshwater, and mild chemical exposure. SS 316 clamps with molybdenum addition resist chloride pitting, seawater, and acid concentrations making them standard for offshore platforms, coastal installations, desalination plants, and chemical process areas. All-SS assemblies avoid galvanic corrosion that occurs when SS bodies are fitted with zinc-plated or HDG fasteners.

Vibration Damping & Noise Reduction

Rubber and EPDM-lined SS clamps significantly attenuate vibration transmission between pipe and structure, reducing fatigue failures in small-bore instrumentation tubing and hydraulic lines. Important in compressor rooms, pump stations, and reciprocating machinery areas where vibration-induced fatigue is a leading cause of pipe failure. Compliant with shipbuilding and naval standards for vibration isolation.

DIN & Metric Dimensional Compliance

DIN 3016-1 single-bolt clamps and DIN 3567-A heavy-duty clamps are manufactured to exact metric dimensions allowing drop-in replacement of OEM-specified clamps in European-standard machinery and process plants. Full dimensional certificates available. Popular for machinery export projects requiring CE marking and DIN-standard component documentation.

High-Pressure & High-Temperature Clamps

Heavy-duty two-bolt and four-bolt SS split-ring clamps are engineered for high-pressure steam, hot oil, and supercritical fluid piping where thermal cycling and pressure surges impose high clamp body loads. SS 316 is preferred for service above 400°C due to its superior high-temperature oxidation resistance versus SS 304.

Compact Loop Clamps for Instrumentation & Hydraulics

SS loop clamps in 6 mm to 50 mm OD range are essential for instrument tubing bundles, hydraulic manifold lines, pneumatic tube bundles, and multi-tube clamp blocks in offshore and process control systems. Modular stacking systems allow multiple tubes to be secured with a common back plate and single M8 fixing bolt, reducing installation time and structural penetrations.

Technical Specifications

Parameter	Specification
Material	SS 304, SS 316, SS 316L (body and fasteners)
Pipe Size Range	DN6 (1/4″) – DN300 (12″); larger on request
Sheet Thickness	0.8 mm – 6 mm depending on clamp type and load rating
Standards	DIN 3016, DIN 3567, MSS SP-69, BS 3974, ISO 3722, SAE J1670
Liner Materials	EPDM, NBR, Silicone, Neoprene, PTFE, Phenolic foam, PVC
Surface Finish	2B, No.4, Passivated, Electropolished
Fasteners	SS 304 or SS 316 hex bolts, nuts, and washers standard
Operating Temperature	-200°C to +870°C (grade and liner dependent)
Price	US$ 10.90 / Kilogram

Material Grade & International Equivalents

Grade	UNS	EN/W.Nr.	DIN	JIS	BS
SS 304	S30400	1.4301	X5CrNi18-10	SUS 304	304S31
SS 316	S31600	1.4401	X5CrNiMo17-12-2	SUS 316	316S31
SS 316L	S31603	1.4404	X2CrNiMo17-12-2	SUS 316L	316S11

Product Types & Variants

Clamp Type	Standard	Pipe Size Range	Application
U-Bolt Clamp	MSS SP-69	DN15–DN300	Structural pipe fixing, process plants
DIN 3016 Single-Bolt Clamp	DIN 3016	6 mm–150 mm OD	Industrial machinery, European plants
DIN 3567 Heavy Clamp	DIN 3567	DN10–DN100	High-vibration machinery, compressors
Worm-Drive Band Clamp	ISO 3722 / SAE J1670	8–440 mm OD	Hose connections, exhaust joints
Loop / Cushion Clamp	BS/NAS/DIN	6–50 mm OD	Instrumentation, hydraulic lines
Two-Bolt Split Ring Clamp	MSS SP-58	DN25–DN200	Heavy-duty anchoring, repair clamps
Insulated Pipe Clamp	Custom	DN15–DN200	Cryogenic, chilled water, LNG

Applications by Industry

Industry	Application
Oil & Gas / Offshore	Topside pipe clamps, subsea clamps, riser line clamps, wellhead tube clamps
Petrochemical	Process line pipe restraints, corrosion-resistant clamps for acid/solvent lines
Power Generation	Steam line clamps, condensate pipe restraints, cooling water clamps
Shipbuilding & Marine	Bilge pipe clamps, fuel line clamps, seawater system clamps
Food & Beverage / Pharma	Hygienic piping clamps, CIP system clamps, clean-room tube clamps
HVAC & Refrigeration	Refrigerant line clamps, chilled water pipe clamps, insulated clamps
Instrumentation & Control	Instrument tube bundle clamps, hydraulic manifold tube clamps

Manufacturing Process

SS strip or sheet is cut to width and fed through roll-forming or progressive die press tools to create U-bolt blanks, clamp shells, and band profiles. Threading of U-bolt legs is performed on CNC thread rolling machines for consistent thread quality. Worm-drive housings are cold-headed and assembled with SS screws. Liner materials are die-cut and assembled into clamp bodies. Assembled clamps undergo torque and clamp-force testing before passivation, final inspection, and packing. Batch traceability is maintained through heat number records from raw material to finished assembly.

Quality Standards & Certifications

• DIN 3016 – Pipe clamps with rubber liner, metric series
• DIN 3567 – Heavy-duty pipe clamps
• MSS SP-58 – Pipe Hangers and Supports
• MSS SP-69 – Pipe Hanger and Support — Selection and Application
• ISO 3722 – Hose clamps
• SAE J1670 – Hose clamp performance requirements
• ISO 9001:2015 – Quality Management System
• EN 10204 3.1 – Mill Test Certificates

Why Choose Stainless Steel Fittings India

• Comprehensive range: U-bolt, DIN 3016/3567, loop, worm-drive, insulated, and custom clamps
• Full-SS assemblies — no mixed metals, no galvanic corrosion risk
• DIN, MSS, ISO, SAE standard compliance — suitable for international EPC projects
• Competitive pricing from US$ 10.90/kg with volume OEM discounts
• EN 10204 3.1 MTCs and dimensional inspection reports with every shipment
• Active export to USA, UK, UAE, Saudi Arabia, Germany, South Korea, Singapore

Frequently Asked Questions

What is the difference between SS 304 and SS 316 pipe clamps?

SS 304 is suitable for general atmospheric and freshwater environments. SS 316 contains 2–3% molybdenum providing superior resistance to chloride pitting, seawater, and chemical attack — mandatory for offshore, marine, and chemical plant applications.

Do you supply DIN 3016 and DIN 3567 pipe clamps?

Yes. Both DIN 3016 single-bolt and DIN 3567 heavy-duty clamps are manufactured in SS 304 and SS 316 with EPDM and NBR rubber liners in full metric size ranges.

Are the clamp fasteners also stainless steel?

Yes. Standard supply includes SS 304 or SS 316 hex nuts, bolts, and washers. Full-SS assemblies are available to avoid galvanic corrosion in aggressive environments.

What liner materials are available?

EPDM, NBR, silicone, neoprene, PTFE, PVC, and phenolic foam insulation liners are available depending on operating temperature, chemical compatibility, and thermal insulation requirements.

What is the maximum operating temperature?

SS 304 and SS 316 clamp bodies can operate up to 870°C. Liner materials limit temperature: NBR to 120°C, EPDM to 150°C, Silicone to 230°C, PTFE to 260°C. Unlined SS clamps can be used up to 870°C.

Do you supply test certificates?

Yes. EN 10204 3.1 Mill Test Certificates for raw material and dimensional inspection reports for finished clamps are supplied with every order. Load test certificates available on request for safety-critical applications.

Can you supply loop clamps for instrument tubing?

Yes. SS loop clamps in 6 mm to 50 mm OD with PVC, EPDM, or rubber cushion are available for instrumentation tubing, hydraulic lines, and small-bore pneumatic tubes. Modular multi-tube versions also available.

What are equivalent terms in other languages?

Spanish: Abrazadera de tubería en acero inoxidable, Collarín inox para tubería, Grapa de tubo inoxidable, Soporte abrazadera
Russian: Хомут из нержавеющей стали, Зажим для труб нержавеющий, Скоба трубная, Хомут трубный DIN 3016
French: Collier de serrage inox pour tuyau, Bride de fixation tube inox, Collier DIN 3016 inoxydable, Attache tube inox
Portuguese: Abraçadeira de aço inox para tubo, Grampo inoxidável, Presilha para tubulação, Braçadeira DIN 3016 inox
Italian: Collare per tubi in acciaio inox, Fascetta stringitubo inox, Morsetto per tubi DIN 3016, Staffa di fissaggio tubi
