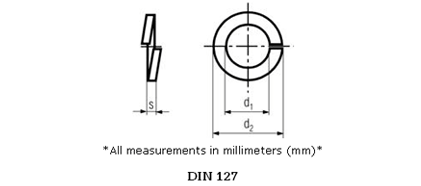

Description
|
d1
|
for screw size
|
d2
|
s
|
|
2.1
|
M2
|
4.4
|
0.5
|
|
2.6
|
M2.5
|
5.1
|
0.6
|
|
3.1
|
M3
|
6.2
|
0.8
|
|
3.6
|
M3.5
|
6.7
|
0.8
|
|
4.1
|
M4
|
7.6
|
.09
|
|
5.1
|
M5
|
9.2
|
1.2
|
|
6.1
|
M6
|
11.8
|
1.6
|
|
8.1
|
M8
|
14.8
|
2
|
|
10.2
|
M10
|
18.1
|
2.2
|
|
12.2
|
M12
|
21.1
|
2.5
|
|
14.2
|
M14
|
24.1
|
3
|
|
16.2
|
M16
|
27.4
|
3.5
|
|
18.2
|
M18
|
29.4
|
3.5
|
|
20.2
|
M20
|
33.6
|
4
|
|
22.5
|
M22
|
35.9
|
4
|
|
24.5
|
M24
|
40
|
5
|
|
27.5
|
M27
|
43
|
5
|
|
30.5
|
M30
|
48.2
|
6
|
|
33.5
|
M33
|
55.2
|
6
|
|
36.5
|
M36
|
58.2
|
6
|
|
39
|
M38
|
61.2
|
6
|
|
42.5
|
M42
|
68.2
|
7
|
|
45.5
|
M45
|
71.2
|
7
|
|
49
|
M48
|
75
|
7
|
|
53
|
M52
|
86
|
8
|
