Description

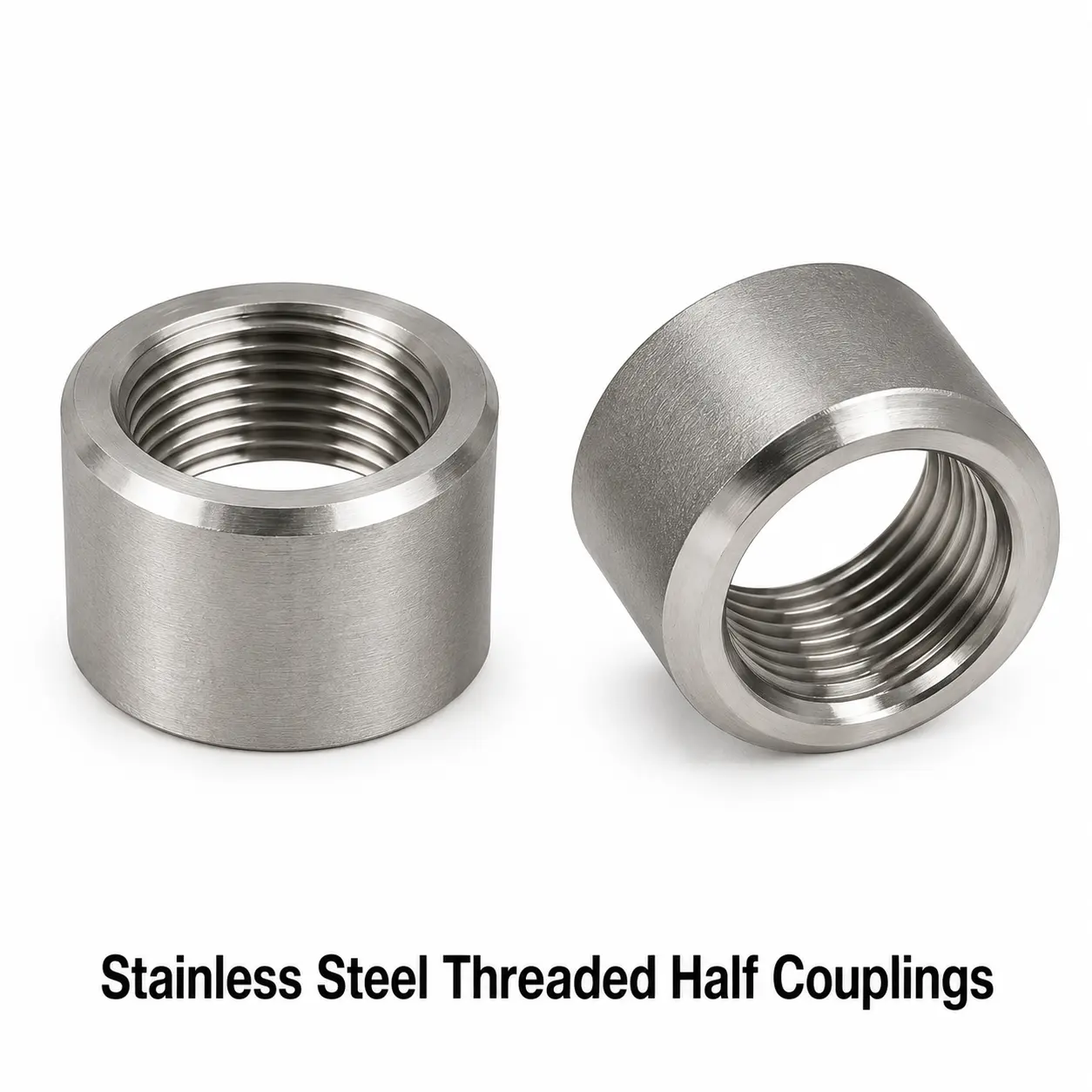

Stainless Steel Threaded Half Couplings

A stainless steel threaded half coupling provides a single threaded outlet that is welded onto a run of pipe, a header or a vessel wall. It creates a strong, high-pressure take-off point for instruments, drains, vents, gauges and small-bore branches.

Forged to ASME B16.11 in 304/316 stainless, a half coupling carries a female thread on one end and a plain or bevelled end on the other for welding. It is the go-to fitting where a branch connection must be added to an existing line or pressure boundary.

Manufacturing & Construction

Our threaded half couplings are produced by hot forging bar or billet, which aligns the grain flow with the shape of the fitting and eliminates the porosity associated with castings. The forgings are then solution-annealed, machined to the ASME B16.11 body dimensions and thread-cut to the required NPT, BSPT or BSPP form. Every piece is finally pickled and passivated to restore the passive chromium-oxide layer that gives stainless steel its corrosion resistance.

Material Grades & Chemical Composition

The fittings are supplied as standard in austenitic grades 304, 304L, 316 and 316L, with higher alloys available on request. The low-carbon (L) grades are preferred where the fitting will be welded, as they resist sensitisation and intergranular corrosion in the heat-affected zone. Typical chemical composition (per ASTM A182) is shown below.

Dimensions & Standards

Dimensions, wall thickness and thread lengths conform to ASME B16.11 (forged fittings), with BS 3799 and MSS SP-83 also referenced. The standard size range is 1/8″ to 4″ nominal bore. Body dimensions increase with pressure class, so a Class 6000 fitting has a heavier wall than a Class 3000 fitting of the same size. Full centre-to-end and thread-engagement figures are available on our dimensional datasheet.

Pressure Class & Temperature Ratings

Threaded fittings to ASME B16.11 are rated by pressure class. Each class is derived from the strength of a matching schedule of pipe, and the allowable working pressure reduces as temperature rises. This product is available in Class 2000, 3000 and 6000.

Because austenitic stainless retains useful strength at elevated temperature and remains tough at cryogenic temperature, these fittings serve across a very wide temperature band; the exact allowable pressure at your design temperature should be taken from the ASME B16.11 rating tables for the selected class and grade.

Threading & Sealing

We supply three thread forms so the fitting can be matched to any piping standard. Tapered threads (NPT, BSPT) seal on the thread flanks with PTFE tape or sealant; parallel threads (BSPP) require a bonded washer, O-ring or gasket to seal.

Testing, Inspection & Certification

Each heat is verified for chemical composition and mechanical properties (tensile, yield, elongation and hardness). Positive material identification (PMI) confirms the grade, and hydrostatic or pneumatic testing, dye-penetrant examination and intergranular corrosion (IGC) testing to ASTM A262 are carried out where the order requires. Fittings are marked with the heat number, size, grade, class and brand, and are supplied with an EN 10204 3.1 mill test certificate with full traceability.

Installation Guidelines

To make a reliable, leak-free joint and to provide a single threaded branch/outlet on a pipe or vessel correctly:

• Cut or drill the header/vessel opening to suit the coupling bore and prepare it for welding.
• Weld the plain end of the half coupling to the pipe or vessel using a qualified procedure and matching filler (e.g. ER308L for 304, ER316L for 316).
• Allow the weld to cool, then dress and, where required, passivate the weld area.
• Screw the branch pipe or instrument into the threaded end using PTFE tape or sealant.

Applications & Industries

Stainless steel threaded half couplings are used across oil & gas, petrochemical and refining, chemical and fertiliser plants, power generation, pharmaceuticals, food and dairy, water treatment, shipbuilding and general engineering — anywhere a compact, corrosion-resistant, high-pressure screwed connection is needed.

Specifications at a Glance

Frequently Asked Questions

Q1. Where is a half coupling used instead of a full coupling?

A half coupling is used to create a branch or outlet on an existing pipe, header or vessel, whereas a full coupling joins two pipes end to end. The half coupling is welded to the pressure boundary and threaded on its free end.

Q2. Can a half coupling be threaded on both ends?

No — by definition a half coupling is threaded on one end only. If both ends must be threaded, a full coupling is the correct fitting.

Q3. What filler metal is used to weld a half coupling?

Use a matching or over-alloyed austenitic filler — typically ER308L for 304/304L and ER316L for 316/316L — with a qualified welding procedure to preserve corrosion resistance.

Q4. What are the typical uses of a half coupling?

Instrument and gauge connections, drain and vent points, thermowell and sensor mountings, sample points and small-bore branches off larger headers and vessels.

Q5. Does welding a half coupling affect corrosion resistance?

The heat-affected zone can be sensitised if not controlled; using low-carbon (L) grades, matching filler and post-weld pickling/passivation restores corrosion performance.

Q6. What is the difference between a half coupling and a weldolet?

Both provide a branch, but a half coupling sits on the pipe surface and gives a threaded outlet, while a weldolet is a contoured branch fitting welded to the run for a butt-welded branch. Half couplings suit small-bore threaded branches.

Q7. What material grades are your threaded half couplings available in?

They are manufactured in austenitic stainless steel grades ASTM A182 F304, F304L, F316 and F316L as standard, with F321, F310, 904L and duplex/super-duplex (F51, F53, F55) available on request. Grade selection depends on the operating temperature, media and corrosion environment.

Q8. What is the difference between 304 and 316 for threaded fittings?

Grade 316 contains 2–3% molybdenum, which gives significantly better resistance to chlorides, pitting and crevice corrosion, making it the preferred choice for marine, coastal and aggressive chemical service. Grade 304 is more economical and well suited to fresh water, steam, food and general industrial use.

Q9. What does the pressure Class (2000/3000/6000) mean?

The class is a pressure–strength rating defined by ASME B16.11. Class 2000 threaded fittings are rated on the basis of Schedule 80/XS pipe, Class 3000 on Schedule 160 and Class 6000 on Schedule XXS. A higher class means a heavier body and a higher allowable working pressure at a given temperature.

Q10. Which thread standards do you supply — NPT, BSPT or BSPP?

We supply NPT (ANSI/ASME B1.20.1, tapered), BSPT / R (BS 21 / ISO 7-1, tapered) and BSPP / G (BS 2779 / ISO 228, parallel). Tapered threads seal on the thread flanks; parallel threads require a bonded seal, washer or O-ring. Always match the fitting thread to the mating component.

Q11. What size range is available?

Standard sizes run from 1/8″ up to 4″ nominal bore. Intermediate and reducing combinations are available, and larger or special sizes can be produced to order.

Q12. Are the fittings forged or cast?

Our threaded fittings are hot forged and then machined and threaded. Forging produces a dense, void-free grain structure with superior mechanical strength and pressure integrity compared with cast fittings.

Q13. What test certificates are provided?

Every consignment is supplied with an EN 10204 3.1 mill test certificate covering chemical composition and mechanical properties, with heat-number traceability. 3.2 certification, PMI (positive material identification), hydrostatic/pneumatic test, dye-penetrant and IGC (intergranular corrosion) reports can be provided on request.

Q14. How should the threaded joints be sealed?

Tapered threads are normally sealed with PTFE tape or a suitable thread sealant applied to the male thread, then made up hand-tight plus the recommended number of turns with a wrench. Do not over-tighten, which can gall the stainless threads or split the fitting.

Q15. Do stainless steel threads gall, and how is it prevented?

Austenitic stainless can gall (cold-weld) if threads are made up dry and fast. Galling is prevented by using PTFE tape or an anti-seize/thread sealant, assembling slowly, and avoiding excessive torque. Using dissimilar grades on the two halves also reduces the tendency.

Q16. Can you supply custom sizes, grades or private marking?

Yes. In addition to the standard range we manufacture to customer drawings and specifications, including special sizes, higher classes, alternative grades and customer-specified heat/marking and packaging.
