Brass Hose Nipples & Brass Hose Tails – Manufacturer, Exporter & Supplier from India
Stainless Steel Fittings India is a leading manufacturer, exporter, and supplier of high-quality Brass Hose Nipples and Brass Hose Tails (also known as Brass Hose Barbs or Brass Hose Connectors) from India. Our brass hose fittings are precision-engineered to provide leak-proof, durable connections between hoses and pipe systems across industrial, hydraulic, pneumatic, plumbing, and fluid-transfer applications worldwide.

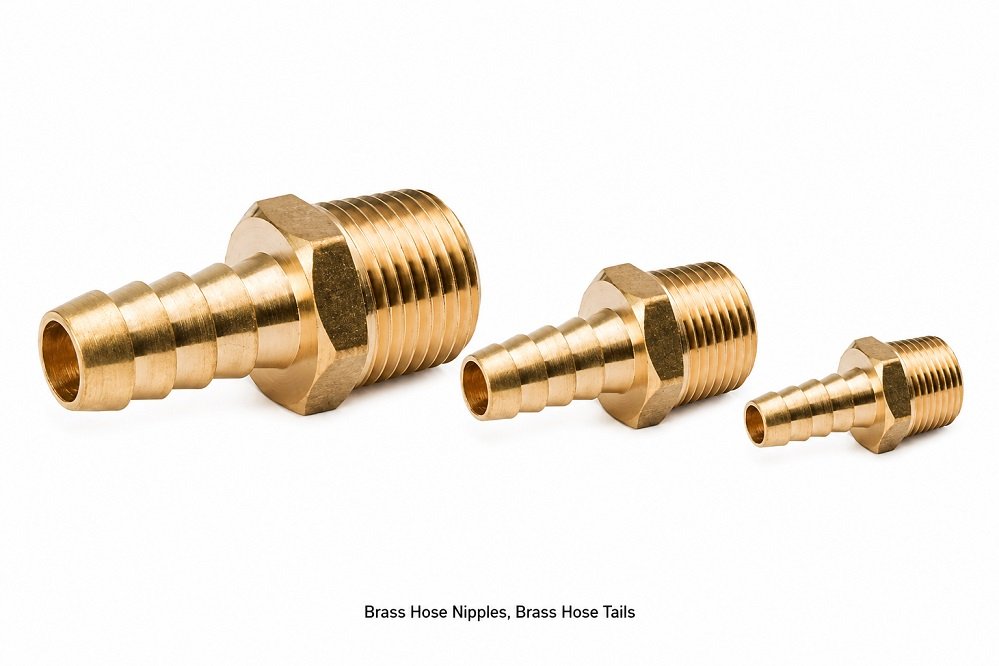

Brass Hose Nipples feature a hexagon body with male threaded one end and a serrated barbed tail on the other end, designed to grip firmly inside rubber hoses, PVC flexible hoses, and silicone tubing. Available in both heavy-duty and light-duty versions, these fittings are suitable for use with garden hoses, fuel lines, air hoses, water supply lines, and more.
Key Features of Brass Hose Nipples / Hose Tails
- Material: High-grade free-machining brass (CW614N / CZ121 / C36000)
- Pressure Rating: Up to 150 PSI depending on size
- Thread Types: NPT, NPTF, BSP, BSPT, ISO, Metric
- Finish: Bright Natural, Nickel Plated, or Chrome Plated
- Temperature Range: -20°C to +120°C
- Manufactured to BS EN 12164 & ASTM standards
- Barbed tail design for secure hose grip without clamps
- Compliant with RoHS and REACH regulations
Size Chart – Brass Hose Nipples by Thread & Tube ID (Hose Bore)
The table below shows the available thread sizes and corresponding tube inner diameter (hose bore) sizes for our Brass Hose Nipples / Hose Tails:
| Thread Size | Thread Type | Hose Barb / Tube ID (inches) | Hose Barb / Tube ID (mm) | Hex Size (mm) | Overall Length (mm) |
|---|---|---|---|---|---|
| 1/8″ | NPT / BSP / BSPT | 1/4″ | 6 mm | 12 | 35 |
| 1/4″ | NPT / BSP / BSPT | 3/8″ | 10 mm | 17 | 42 |
| 3/8″ | NPT / BSP / BSPT | 1/2″ | 13 mm | 22 | 50 |
| 1/2″ | NPT / BSP / BSPT | 5/8″ | 16 mm | 27 | 58 |
| 3/4″ | NPT / BSP / BSPT | 3/4″ | 19 mm | 32 | 65 |
| 1″ | NPT / BSP / BSPT | 1″ | 25 mm | 41 | 75 |
| 1-1/4″ | NPT / BSP / BSPT | 1-1/4″ | 32 mm | 50 | 88 |
| 1-1/2″ | NPT / BSP / BSPT | 1-1/2″ | 38 mm | 55 | 95 |
| 2″ | NPT / BSP / BSPT | 2″ | 51 mm | 65 | 110 |
Thread Type Reference Chart
| Thread Standard | Full Name | Region | Seal Type | Available Sizes |
|---|---|---|---|---|
| NPT | National Pipe Taper | USA / Canada | Taper (Sealant required) | 1/8″ – 2″ |
| NPTF | National Pipe Taper Fuel | USA | Dry Seal Taper | 1/8″ – 2″ |
| BSP | British Standard Pipe Parallel | UK / Asia / Australia | Parallel (Sealant required) | 1/8″ – 2″ |
| BSPT | British Standard Pipe Taper | UK / Asia | Taper Self-sealing | 1/8″ – 2″ |
| ISO 228 | ISO Parallel Pipe Thread | Europe / International | Parallel | 1/8″ – 2″ |
| Metric | DIN / ISO Metric Thread | Europe | Parallel / Taper | M10 – M50 |
Specifications
| Product Name | Brass Hose Nipples / Brass Hose Tails / Brass Hose Barbs |
| Material | Brass (CW614N, CZ121, C36000) |
| Sizes Available | 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ |
| Thread Standards | NPT, NPTF, BSP, BSPT, ISO 228, Metric |
| Finish | Bright Natural, Nickel Plated, Chrome Plated |
| Price | US$ 14.00 / kg |
| Minimum Order Quantity | As per inquiry |
| Manufacturer | Stainless Steel Fittings India |
| Origin | India |
| Certifications | RoHS, REACH, BS EN 12164 |
Applications of Brass Hose Nipples & Hose Tails
Our brass hose nipples are widely used across multiple industries including hydraulic systems, pneumatic pipelines, garden irrigation, water supply, fuel transfer, automotive cooling, gas distribution, chemical processing, and dairy & food equipment. Their corrosion resistance and machinability make brass the preferred material for hose fitting connections globally.
Frequently Asked Questions (FAQs)
Q1: What are Brass Hose Nipples used for?
A: Brass Hose Nipples (also called Brass Hose Tails or Hose Barbs) are used to connect flexible rubber, PVC, or silicone hoses to threaded pipe fittings, valves, or equipment ports. They are commonly used in hydraulic systems, pneumatic lines, water supply, gas lines, irrigation, and automotive applications.
Q2: What thread types are available for Brass Hose Nipples?
A: Stainless Steel Fittings India supplies Brass Hose Nipples with NPT, NPTF, BSP (BSPP), BSPT, ISO 228 (parallel), and Metric thread standards to suit customers in the USA, UK, Europe, Asia, and Australia.
Q3: What sizes are available?
A: Our Brass Hose Nipples are available in sizes from 1/8″ to 2″ (thread size), with hose barb tube IDs ranging from 6 mm (1/4″) up to 51 mm (2″). Custom sizes can also be manufactured on request.
Q4: What is the price of Brass Hose Nipples?
A: The price of Brass Hose Nipples from Stainless Steel Fittings India starts at US$ 14.00 per kg. Final pricing depends on size, thread type, finish, and order quantity. Please contact us for a detailed quotation.
Q5: What finish options are available?
A: Brass Hose Nipples are available in three finishes: Bright Natural (standard polished brass), Nickel Plated (for improved corrosion and tarnish resistance), and Chrome Plated (for decorative and sanitary applications).
Q6: Are these fittings suitable for high-pressure applications?
A: Yes. Our heavy-duty brass hose nipples can handle pressures up to 150 PSI, making them suitable for hydraulic, pneumatic, and pressurized water systems. For ultra-high-pressure applications, we recommend consulting our technical team.
Q7: What is the difference between BSP and NPT threads?
A: BSP (British Standard Pipe) threads are used predominantly in the UK, Europe, Asia, and Australia and are measured in Whitworth form. NPT (National Pipe Taper) threads are the North American standard. They are not interchangeable — always specify the thread type when ordering to ensure compatibility.
Q8: Can Brass Hose Nipples be used with PVC hoses?
A: Yes. Brass Hose Nipples are fully compatible with rubber hoses, PVC flexible hoses, polyurethane hoses, and silicone tubing. The serrated barb design grips the inner bore of the hose securely, and a hose clamp can be added for extra security in high-vibration environments.
Q9: Do you supply Nickel Plated Brass Hose Nipples?
A: Yes. Stainless Steel Fittings India supplies Nickel Plated Brass Hose Nipples for applications requiring enhanced corrosion resistance, aesthetic finish, or compatibility with potable water systems. Chrome-plated variants are also available.
Q10: What is the minimum order quantity (MOQ)?
A: The MOQ varies by product size and configuration. We accept orders from small batches to bulk industrial quantities. Please contact our sales team to discuss your requirements and receive a custom quotation.
Q11: Are your Brass Hose Nipples RoHS and REACH compliant?
A: Yes. All Brass Hose Nipples manufactured by Stainless Steel Fittings India comply with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) regulations, making them suitable for export to the EU, UK, and other regulated markets.
Q12: Do you export Brass Hose Nipples internationally?
A: Yes. Stainless Steel Fittings India is a major exporter of Brass Hose Nipples and Brass Hose Tails to the USA, UK, Germany, Australia, Canada, UAE, Saudi Arabia, South Africa, and across Southeast Asia. We handle all export documentation, packaging, and logistics support.
Q13: Can I get custom-sized or custom-threaded Brass Hose Nipples?
A: Absolutely. We offer custom manufacturing of Brass Hose Nipples in non-standard sizes, special thread forms, custom hex configurations, and unique barb profiles as per customer drawings or samples. Please share your specifications for a quote.
Q14: How do I choose the right Hose Nipple for my application?
A: To select the correct Brass Hose Nipple, you need to know: (1) the hose inner diameter (tube ID / bore size), (2) the thread size and type of the port or fitting it connects to, (3) the working pressure and temperature, and (4) the fluid media. Our technical team is happy to assist with selection — contact us with your application details.
Why Choose Stainless Steel Fittings India for Brass Hose Nipples?
- 20+ years of manufacturing experience in precision brass fittings
- State-of-the-art CNC machining and quality control laboratory
- Wide range of sizes, thread standards, and finish options in stock
- Competitive pricing starting at US$ 14.00/kg with bulk discounts
- ISO-certified manufacturing facility in India
- Fast delivery with worldwide export capability
- Custom manufacturing as per drawings or samples
- Dedicated technical support and after-sales service
Contact Stainless Steel Fittings India today for competitive pricing, technical specifications, and bulk order inquiries on Brass Hose Nipples, Brass Hose Tails, and all types of brass hose fittings.
