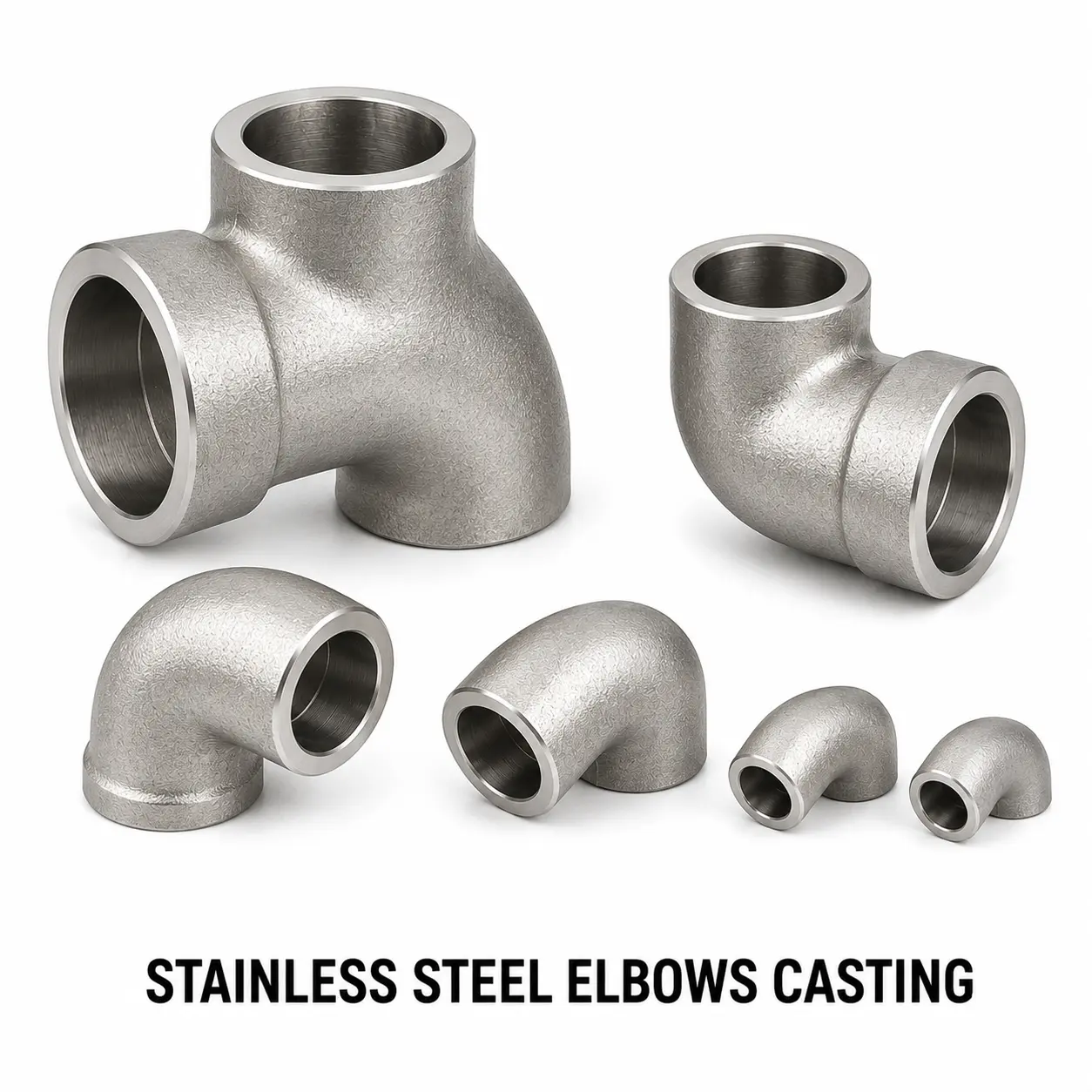

Stainless Steel Elbows Casting

Stainless Steel Fittings India is a premier manufacturer and exporter of Stainless Steel Cast Elbows. Our precision-cast SS elbows are manufactured using shell molding, sand casting, and investment casting processes to serve demanding piping system requirements across oil & gas, chemical, marine, and power generation industries worldwide.

Types of Stainless Steel Cast Elbows

• 90-Degree Elbows – Standard and long-radius configurations
• 45-Degree Elbows – For moderate directional changes
• 180-Degree Return Bends – U-bends for heat exchangers and process coils
• Long Radius Elbows (LR) – 1.5D radius; reduces pressure drop
• Short Radius Elbows (SR) – 1D radius; compact installations
• Reducing Elbows – Direction change with simultaneous size reduction
• Elbow Flanges – Elbows with integrated cast flanges
• Custom Angle Elbows – 22.5°, 30°, 60°, 135° and other special angles

Material Grades Available

• SS 304 / SS 304L (CF8 / CF3) – ASTM A351
• SS 316 / SS 316L (CF8M / CF3M) – ASTM A351
• SS 321, SS 347 – High-temperature service
• Duplex SS 2205, Super Duplex SS 2507
• SS 317L, SS 904L for severe corrosion service

Casting Processes for Stainless Steel Elbows

• Investment Casting: Precise internal contours, smooth bore, excellent wall thickness uniformity for small-to-medium elbows
• Shell Molding: Good surface finish, dimensional repeatability for medium-sized elbows
• Sand Casting: Cost-effective for large-diameter elbows and heavy-wall configurations

Dimensional Standards

• ASME B16.9 – Factory-Made Wrought Butt-Welding Fittings (reference for cast equivalents)
• ASME B16.11 – Forged Fittings, Socket-Welding and Threaded
• MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings
• EN 10253-1, EN 10253-4
• DIN 2605, DIN 2606
• JIS B 2312, JIS B 2313

End Connections

Butt weld ends (BW), socket weld ends (SW), threaded NPT/BSP, flanged ends (RF/FF/RTJ), and plain ends for custom connections.

Applications

• Oil and gas pipelines, refineries, and LNG facilities
• Chemical and petrochemical process lines
• Marine piping systems and offshore platforms
• Power plant steam and condensate lines
• Desalination and water treatment plants
• Pharmaceutical and food processing piping

Frequently Asked Questions (FAQs)

Q1: What is the difference between cast elbows and forged/wrought elbows?

Cast elbows are produced by pouring molten stainless steel into molds and are ideal for complex shapes, thick-wall sections, and large diameters. Forged/wrought elbows have better grain structure and are preferred for high-pressure, high-cycle fatigue applications. For moderate pressure and temperature service, cast elbows per ASTM A351 are widely accepted.

Q2: What size range do you manufacture for stainless steel cast elbows?

We manufacture cast elbows from 1/8″ (DN6) to 48″ (DN1200) NPS. Small elbows up to 4″ are commonly produced by investment casting or shell molding. Larger elbows from 6″ to 48″ are produced by sand casting. Custom sizes outside standard ranges are also possible.

Q3: Can you cast elbows with non-standard angles?

Yes. We manufacture custom-angle elbows at any degree from 1° to 180° including 22.5°, 30°, 45°, 60°, 90°, and 135°. Custom patterns are developed from customer drawings or 3D models. These are particularly useful in space-constrained piping installations.

Q4: What is the price of stainless steel cast elbows?

Base price for stainless steel cast elbows is USD 11.30 per kilogram. Pricing depends on grade, size, angle, wall thickness, end connection type, and quantity. Please share drawings for a formal quotation.

Q5: What wall thickness schedules are available for cast elbows?

Cast elbows are available in schedule STD (Standard), SCH 40, SCH 80, SCH 160, and XXH (Double Extra Heavy) wall thicknesses corresponding to ASME B36.19M pipe schedules. Custom wall thicknesses per pressure/temperature requirements can be engineered.

Q6: Do cast elbows require post-casting heat treatment?

Yes. All stainless steel castings including elbows undergo solution annealing heat treatment at 1040–1120°C followed by rapid water quench to restore corrosion resistance and relieve casting stresses. Heat treatment certificates are provided with each shipment.

Q7: What surface finish do your cast elbows have?

Investment cast elbows have Ra 3.2–6.3 µm surface finish. Shell molded elbows achieve Ra 6.3–12.5 µm. Sand cast elbows have Ra 12.5–25 µm. Shot blasting and grinding are standard finishing operations. Mirror polishing and electropolishing available on request.

Q8: Are your stainless steel cast elbows available with radiographic testing?

Yes. Radiographic testing (RT) per ASTM E94 and ASME Section V is available for all cast elbows. RT is particularly important for pressure-retaining elbows in critical service. We offer both 100% RT and spot RT per customer specifications.

Q9: Can you supply reducing elbows in stainless steel casting?

Yes. We cast reducing elbows that combine a directional change with a diameter reduction in a single casting. Available in all standard grade and size combinations. Reducing elbows eliminate the need for a separate elbow and reducer, saving space and eliminating additional weld joints.

Q10: What is the minimum order quantity (MOQ) for stainless steel cast elbows?

There is no fixed MOQ for standard configurations. We accept orders from 1 piece for samples up to full production runs. Smaller quantities may carry higher unit pricing. For standard configurations, we maintain stock inventory that allows quick delivery of small orders.

Q11: Do your cast elbows meet PED (Pressure Equipment Directive) requirements?

Yes. Our stainless steel cast elbows can be supplied with CE marking under PED 2014/68/EU for pressure equipment supplied to the European market. We work with approved third-party inspection bodies for PED compliance certification.

Q12: What is the lead time for stainless steel cast elbows?

Standard cast elbows in common grades (SS 304, SS 316) are available ex-stock or within 2–3 weeks. Custom configurations and large sizes require 4–8 weeks. First article production including pattern development takes 6–10 weeks for completely new designs.
