Stainless Steel Welding Nipples | SS Hex Weld Nipples Manufacturer & Exporter – India

Stainless Steel Fittings India manufactures and exports precision-grade Stainless Steel Welding Nipples and SS Hex Weld Nipples conforming to ASME B1.20.1, MSS SP-95, and BS EN 10226 standards. These components are threaded pipe extensions used to connect pipes, valves, and fittings in high-pressure, high-temperature, and corrosive service environments across oil & gas, chemical processing, power generation, pharmaceuticals, and infrastructure projects. Available in grades 304, 304L, 316, 316L, 317L, 321, 310S, 904L, and Duplex 2205, our weld nipples are supplied to EPC contractors, electrical OEMs, power utilities, and industrial distributors globally. Price: US$ 11.90 / Kilogram (Stainless Steel items, ex-works India).

Product Overview – Stainless Steel Welding Nipples

What Is a Stainless Steel Welding Nipple?

A stainless steel welding nipple is a short-length externally threaded pipe fitting used to extend, connect, or transition pipe runs. It is machined from bar stock or seamless pipe and features male NPT, BSPT, or BSP threads on one or both ends. Weld nipples are essential components in instrumentation manifolds, hydraulic headers, process pipe networks, steam distribution lines, and chemical injection skids. They are distinct from close nipples, hex nipples, swage nipples, barrel nipples, and long nipples, yet function within the same family of threaded pipe connection fittings. Common related terms include pipe stud, threaded stud, pipe extension, barrel nipple, running nipple, and connectors for pipe to valve transition.

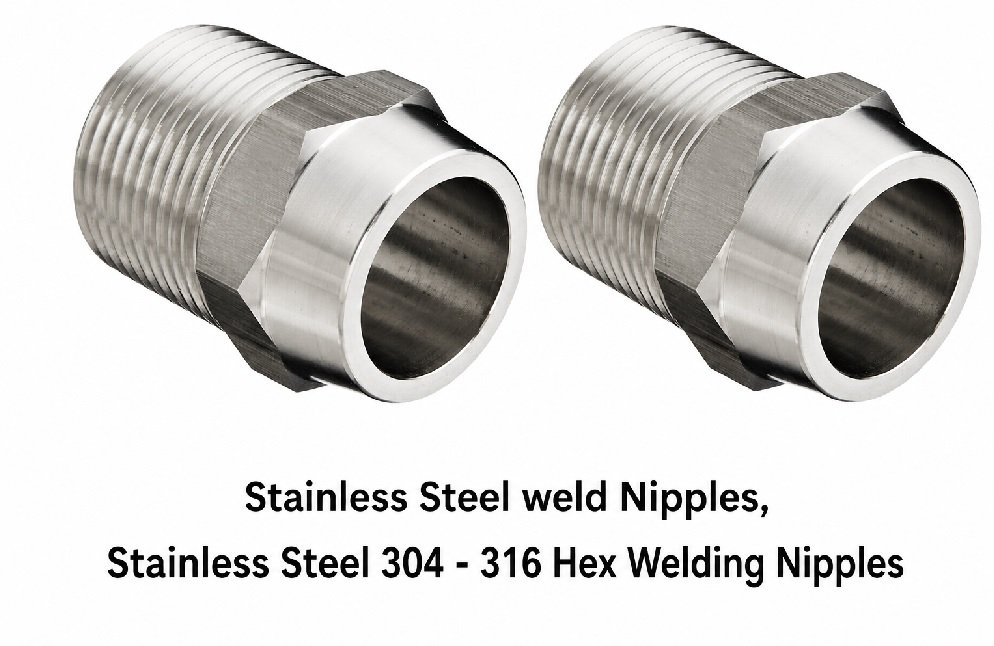

SS Hex Weld Nipples – Design & Function

SS Hex Weld Nipples incorporate a machined hexagonal shoulder at the center, allowing a standard spanner or wrench to grip the fitting during installation without damaging the pipe surface. The hex body provides leak-proof assembly when used with matching female-threaded sockets, couplings, elbows, tees, and ball valves. They are widely used in hydraulic instrument impulse lines, gauge root valve connections, thermowell assemblies, chemical dosing systems, and orifice fitting assemblies. In process plants, hex nipples replace close nipples and barrel nipples wherever wrench clearance is critical. Associated fittings include street elbows, reducing couplings, pipe bushings, hex plugs, and hex bushings in the same stainless steel grade for corrosion resistance continuity.

Short, Long, and Close Pattern Weld Nipples

Weld nipples are manufactured in three primary patterns: close (full thread, no unthreaded center), short (threads at both ends with a short unthreaded shank), and long (extended barrel for welding or longer spans). Close nipples are also called running nipples or all-thread nipples and are used where zero clearance between female fittings is acceptable. Long weld nipples are used in panel mounting, bulkhead installation, and tank penetration applications. Short nipples, also called barrel nipples or pipe stubs, are the most common commercial product. Related terms include pipe stub, threaded boss, weld boss, pipe coupling extension, pipe nipple stub end, and butt weld nipple used in welded pipeline assemblies.

Pressure Rating and Wall Thickness – Schedule Variants

Stainless steel weld nipples are manufactured in Schedule 40, Schedule 80, Schedule 160, and XXS (double extra strong) wall thicknesses to match the pressure class of the connecting pipework. Schedule 80 and above are required for high-pressure hydraulic, steam, and chemical injection service. Wall thickness determines both burst pressure and thread engagement depth, which directly affects joint integrity and ASME B16.11 compliance for threaded fittings. Our nipples are rated from Class 150 to Class 6000 depending on size and schedule, making them suitable for working pressures up to 15,000 psi in compact bore sizes. Related specifications include ASME B36.19M, ASTM A312, ASTM A403, and MSS SP-79 for socket weld and butt weld nipple configurations.

Material Grades and Corrosion Service

Grade selection for stainless steel welding nipples depends on the service medium, operating temperature, and corrosion mechanism. Grade 304/304L is suitable for general-purpose water, food processing, and atmospheric corrosion applications. Grade 316/316L is preferred for chloride-containing environments, marine service, and pharmaceutical clean utilities. Grade 321 and 347 are used in elevated-temperature applications where sensitization of austenitic grades is a concern. Duplex 2205 and Super Duplex 2507 provide high strength and exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in sour gas and offshore environments. Related alloys include Hastelloy C276, Inconel 625, Monel 400, and Alloy 20 for highly aggressive chemical service environments.

Thread Standards – NPT, BSPT, BSP, and Metric

Thread form is a critical specification for weld nipples used in cross-border supply. NPT (National Pipe Taper) per ASME B1.20.1 is the standard for North American markets. BSPT (British Standard Pipe Taper) per BS 21/ISO 7-1 is used across UK, European, Middle Eastern, and Asian markets. BSPP (parallel) threads are used in hydraulic fittings where O-ring face sealing is employed. Metric threads per DIN 2999 are common in German and European process plant. Our manufacturing facility machines all thread forms to dimensional accuracy within ±0.001″ using CNC threading equipment and calibrated thread gauges. Related terms include tapered thread, parallel thread, NPT male nipple, NPTF dryseal thread, Whitworth pipe thread, and G-thread fittings used across international industrial standards.

Applications in Industrial Pipeline Systems

Stainless steel weld nipples are used in virtually every sector of process and utility piping. In the oil and gas industry, they form part of wellhead instrumentation assemblies, chemical injection manifolds, gauge connections, and hydraulic control lines. In power plants, they connect steam traps, pressure transmitters, and blowdown valves to the main steam distribution headers. In chemical and pharmaceutical plants, they provide sterile, crevice-free connections in CIP/SIP (clean-in-place/sterilize-in-place) circuits. Electrical OEMs and panel builders use them for compressed air, cooling water, and hydraulic connections in control panels. Related components used in the same piping circuits include isolation valves, needle valves, check valves, manifold blocks, compression fittings, and pipe clamps.

Hex Nipples vs. Standard Round Nipples – Engineering Comparison

The fundamental engineering difference between hex and round nipples is wrenching geometry. Round nipples require a pipe wrench that grips by biting into the pipe surface, potentially causing galling in stainless steel. Hex nipples allow use of an open-end or box spanner for controlled torque application without surface damage. This is particularly important in food-grade, pharmaceutical, and high-purity systems where surface integrity must be maintained. Hex nipples are also preferred in confined spaces where a pipe wrench cannot engage. From a hydraulic standpoint, both types provide equivalent flow capacity and pressure rating for a given size and schedule. Related fittings include hex plugs, hex bushings, hex couplings, reducing hex nipples, and concentric swage nipples used in similar service conditions.

Key Features of SS Welding Nipples

• Precision CNC-machined threads to ASME B1.20.1, BS EN 10226, and DIN 2999 standards
• Available in Schedule 40, 80, 160, and XXS wall thickness
• Sizes from 1/8″ to 4″ NPS (DN6 to DN100)
• All grades supplied with material test certificate (MTC) per EN 10204 3.1
• Electropolished, pickled, and passivated surface finish available
• 100% dimensional and thread gauge inspection before dispatch
• Custom lengths, reduced-bore, and swage nipple configurations on request

Corrosion Resistance

Stainless steel nipples resist pitting corrosion, intergranular attack, galvanic corrosion, and oxidation at elevated temperatures. The passive chromium oxide film on the surface regenerates on contact with oxygen, providing self-healing protection. Grade 316L with molybdenum addition offers PREN (Pitting Resistance Equivalent Number) above 24, making it suitable for seawater and chloride-rich process environments. Duplex grades offer PREN above 35, suitable for offshore and subsea applications. Related performance terms include crevice corrosion resistance, stress corrosion cracking immunity, sensitization resistance, intergranular corrosion protection, chloride pitting resistance, and oxidation resistance up to 870°C for 310S grade nipples.

High Pressure and Temperature Rating

Stainless steel weld nipples in Schedule 80 and heavier schedules are rated for high-pressure service exceeding 3,000 psi at ambient temperature for 1/2″ NPS. At elevated temperatures, the allowable working pressure reduces per ASME B31.3 derating curves. Our nipples are hydrostatic pressure tested on request to 1.5× the rated working pressure. They maintain structural integrity from cryogenic temperatures (−196°C for 316L in LNG service) up to 870°C (310S grade in furnace and kiln applications). Related pressure ratings include Class 3000, Class 6000, 10K, 16K, and 20K as per JIS B2316 and ASME B16.11 socket weld and threaded fittings pressure classes.

Dimensional Accuracy and Thread Integrity

All weld nipples are machined to ASME B36.19M pipe dimension standards for OD and wall thickness. Thread form, lead, taper, and pitch are verified using calibrated plug gauges and ring gauges traceable to NABL-accredited standards. Dimensional reports covering OD, bore, thread length, hex flat size, and overall length are available with each lot. Our CNC threading centers maintain tolerance of ±0.001″ on thread pitch diameter, ensuring leak-free assembly with standard pipe fittings couplings, elbows, valves, and manifolds. Related inspection terms include thread gauge calibration, hydro test, PMI (positive material identification), hardness testing, and dimensional report as per ASTM A530 and customer-specific inspection plans.

Surface Finish Options

Standard supply condition is mill finish with pickled and passivated surface per ASTM A380. Electropolished finish (EP) reduces surface roughness to Ra ≤ 0.4 µm, required for pharmaceutical and semiconductor applications. Bright annealed (BA) finish is available for food-grade sanitary nipples. Mechanical polishing to 240-grit or mirror polish is offered for decorative architectural applications. Anti-galling treatment or PTFE thread sealant coating is applied on request for valve and instrument connections prone to seizure during installation. Related surface treatment terms include pickling passivation, electropolishing, bright anneal, shot blasting, bead blasting, and ASTM A967 chemical passivation standard compliance.

Weldability and Fabrication

Low-carbon grades (304L, 316L) and stabilized grades (321, 347) are specified when weld nipples are attached by orbital welding, GTAW (TIG), or SMAW processes to pipework. The low carbon content prevents carbide precipitation in the heat-affected zone, avoiding sensitization and subsequent intergranular corrosion. All nipples supplied in annealed condition with solution treatment per ASTM A1016 for dimensional and microstructural consistency. Welding procedure qualification under ASME IX or ISO 15614-1 is recommended when weld nipples are used in pressure vessel nozzle connections, tank penetrations, or boiler stub connections. Related fabrication terms include socket weld boss, weld-o-let, thread-o-let, branchlet, pipe stub weld, and set-on weld nipple for pressure vessel nozzle connections.

Compliance and Certifications

Our stainless steel weld nipples are manufactured, tested, and documented in accordance with international quality and product standards including ASME, ASTM, BS EN, ISO, and DIN. Material traceability is maintained from raw material heat through finished product dispatch. Third-party inspection by TÜV, Bureau Veritas, SGS, and Lloyd’s Register is available for critical project supplies. PED (Pressure Equipment Directive) 2014/68/EU compliance documentation is provided for European project exports. REACH and RoHS compliance declarations are available for electrical OEM customers. Related certification terms include mill test certificate, heat certificate, chemical analysis report, mechanical test report, hardness test, and EN 10204 Type 3.1 and 3.2 inspection certificates.

Technical Specifications

Raw Material Grades

International Material Grade Equivalents

Product Types and Variants

Product Code Table – SS Weld Nipples (Short Pattern, NPT)

Applications by Industry

Manufacturing Process

Stainless Steel Fittings India manufactures weld nipples through a controlled multi-stage production process. Raw material in the form of seamless stainless steel bar or pipe is procured from approved mills with EN 10204 3.1 mill test certificates. The bar stock is cut to length on CNC saw machines, and each blank is inspected for correct grade and dimensions. Threading is performed on CNC single-spindle or multi-spindle threading machines using precision-ground carbide thread inserts, with thread pitch, form, and taper verified by NABL-calibrated plug gauges. Hex nipples undergo an additional milling or forging operation to generate the hexagonal flats before threading. All nipples are pickled in a nitric-hydrofluoric acid bath and passivated per ASTM A380 to remove free iron and restore the passive surface layer. Final inspection includes dimensional verification, thread gauge check (Go/No-Go), visual examination, and lot traceability tagging before packing in polythene-wrapped bundles with wooden crating for export shipment.

Quality Standards and Certifications

Why Choose Stainless Steel Fittings India

Stainless Steel Fittings India operates a dedicated precision machining facility for stainless steel threaded components. We stock raw material in 10 stainless steel grades and maintain ready inventory of common sizes from 1/4″ to 2″ in NPT and BSPT threads for immediate dispatch. Our engineering team provides material selection guidance, pressure rating calculations, and thread standard consultation for project specifications. We export to 35+ countries across the Middle East, Southeast Asia, Europe, Australia, and North America, with logistics experience covering door delivery, FOB Mumbai, CIF, and DDP Incoterms. All products ship with full documentation: MTC, packing list, commercial invoice, country of origin certificate, and optional third-party inspection reports. Lead time for standard items is 3–7 working days; custom grades and sizes within 2–4 weeks.

Frequently Asked Questions – SS Welding Nipples

1. What is the difference between a weld nipple and a hex nipple?

A weld nipple is a generic term for a short externally threaded pipe fitting. A hex nipple is a specific subtype with a machined hexagonal center section that allows tightening with a standard spanner without marring the pipe surface. Hex nipples are preferred in instrumentation, pharmaceutical, and food-grade piping where surface integrity is critical.

2. What thread standards are available?

We supply NPT (ASME B1.20.1), BSPT (BS 21 / ISO 7-1), BSPP (ISO 228), and metric DIN 2999 threads. NPT is standard for US and North American projects; BSPT is common in UK, European, Middle Eastern, and Asian projects. Custom thread forms including JIS and API LP threads are available on request.

3. What is the pressure rating of SS weld nipples?

Pressure rating depends on size, wall thickness (schedule), and temperature. A 1/2″ NPS Sch 80 SS 316L nipple has an allowable working pressure exceeding 3,000 psi at ambient temperature per ASME B31.3. At elevated temperatures, the rating is derated per ASME allowable stress tables. Class 3000 and Class 6000 ASME B16.11 fittings are available for high-pressure service.

4. Can you supply nipples with one weld end and one threaded end?

Yes. Weld end nipples with one NPT/BSPT threaded end and one plain beveled weld end are available in all grades and sizes. These are used in pipeline assemblies where a transition from threaded to welded piping is required, such as in instrumentation root valve connections on welded pipelines.

5. What grades are suitable for seawater and offshore service?

For seawater and offshore applications, we recommend Duplex 2205 (S32205) or Super Duplex 2507 (S32750), which offer PREN values above 35 and 42 respectively, providing strong resistance to pitting and stress corrosion cracking. Grade 316L is acceptable for mildly aggressive marine environments but is not recommended for full seawater immersion service.

6. Do you provide material test certificates?

Yes. All our stainless steel weld nipples are supplied with EN 10204 Type 3.1 material test certificates showing chemical composition, mechanical properties, and heat/lot number. Type 3.2 certificates with independent third-party witness inspection by TÜV, Bureau Veritas, SGS, or Lloyd’s Register are available for critical project orders.

7. What is your minimum order quantity (MOQ)?

There is no strict MOQ for standard sizes in NPT and BSPT thread in grades 304 and 316L. Sample orders of 10–50 pieces are accepted for trial procurement. For custom grades (317L, 321, 904L, Duplex), a minimum of 25–50 kg per item is recommended to cover material procurement costs. Blanket orders with scheduled releases are welcome for repeat customers.

8. What is the current price for stainless steel weld nipples?

The current indicative price for stainless steel welding nipples is US$ 11.90 per kilogram ex-works India for standard grades 304/316L in NPT thread. Prices vary by grade, quantity, schedule, and thread type. Duplex and super duplex grades are priced higher. Contact us for a formal quotation with exact pricing based on your bill of materials.

9. Can you supply in metric sizes?

Yes. We supply weld nipples in metric pipe sizes (DN6 to DN100) conforming to EN 10255 (formerly BS 1387) pipe dimensions, with BSPT or metric thread forms. Custom bore and OD combinations are machined to drawing. Metric hex nipples to DIN 2982 are also available in grades 304 and 316L.

10. What packaging is used for export shipment?

Standard export packing: polythene-wrapped individual pieces, bundled and placed in corrugated inner boxes, packed in plywood export crates with silica gel desiccant and fumigation certificate. Each piece is tagged with grade, size, heat number, and our part code. Packing complies with ISPM 15 phytosanitary standard for wood packaging. Custom marking, color coding, or customer-specific labels are provided on request.

Equivalent Terms in Other Languages

Related Products – Stainless Steel Welded Fittings (Same Category)

• Stainless Steel Buttweld Fittings – elbows, tees, reducers, caps conforming to ASME B16.9
• Stainless Steel Socket Weld Fittings – ASME B16.11 socket weld elbows, tees, couplings, and unions
• Stainless Steel Dairy Fittings – DIN 11851, SMS, RJT sanitary fittings for food and beverage
• Stainless Steel Pipe Fittings – comprehensive range of threaded and flanged pipe fittings
• Stainless Steel Forgings – forged flanges, fittings, and custom parts to ASME and DIN standards

Linked Technical Terms

Close nipple, running nipple, barrel nipple, pipe stub, hex bushing, hex plug, hex coupling, reducing nipple, swage nipple, concentric reducer nipple, eccentric swage nipple, weld boss, thread-o-let, weld-o-let, pipe coupling, street elbow, pipe union, locknut, reducing bushing, NPT fitting, BSPT fitting, BSP parallel fitting, socket weld fitting, threaded end cap, pipe plug, compression fitting, tube fitting, instrumentation manifold, gauge root valve, impulse line, chemical injection quill, weld neck flange nozzle, stainless steel compression tube fittings, instrumentation tubing fittings, high-pressure nipple, double-ended stud nipple, EN 10255 pipe nipple, DIN 2982 hex nipple.

Request a Quote – Stainless Steel Welding Nipples

Contact Stainless Steel Fittings India for a formal quotation on stainless steel welding nipples and SS hex weld nipples. Provide your size, schedule, thread standard, grade, quantity, and delivery port for an accurate price and lead time. We respond to all RFQs within 24 hours on business days.

Price: US$ 11.90 / Kilogram (ex-works India, standard grades 304/316L, subject to quantity and specification)
