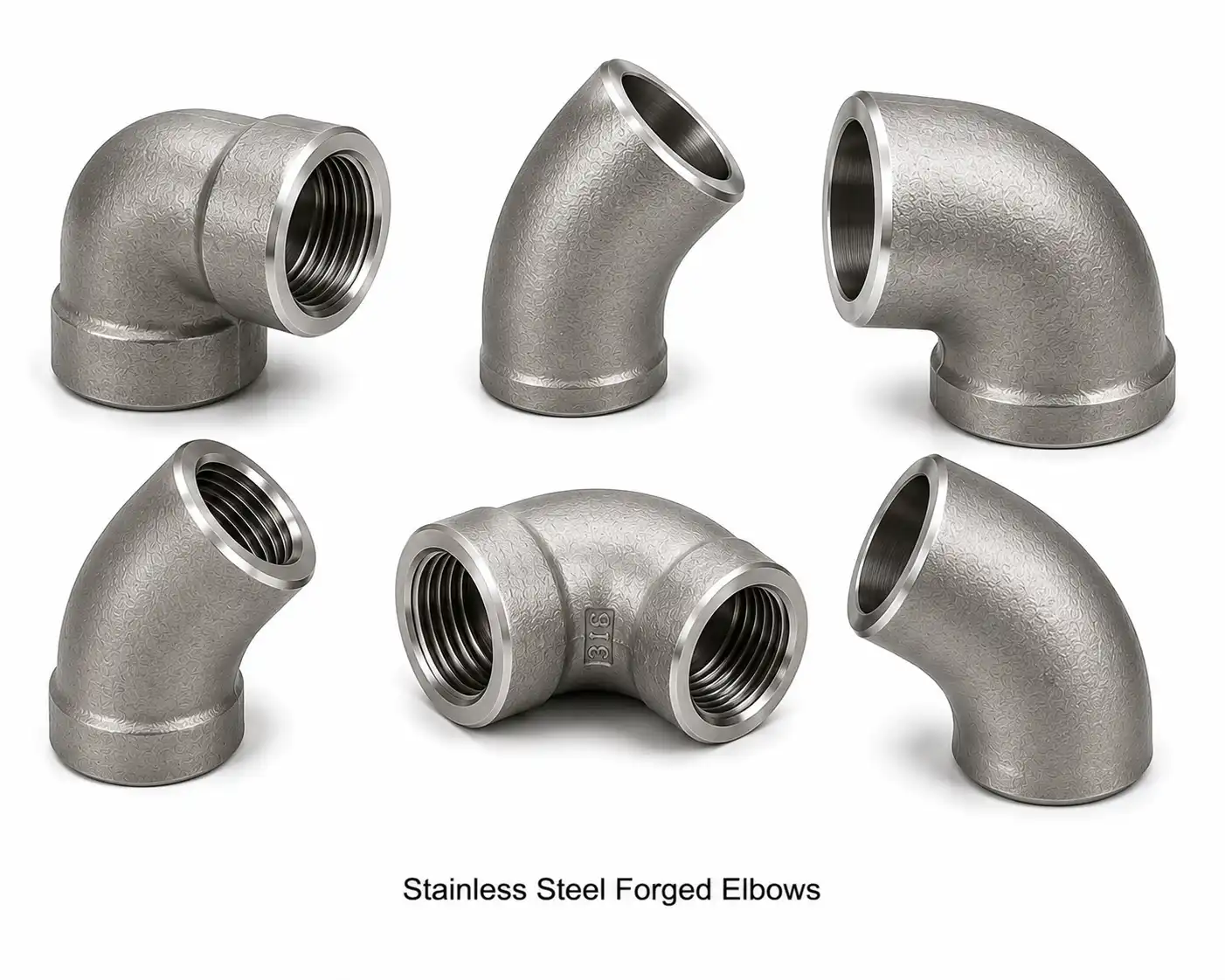

Stainless Steel Forged Elbows – Manufacturer & Exporter from India

Stainless Steel Forged Elbows from Stainless Steel Fittings India are high-integrity pipe fittings manufactured through closed-die hot forging for use in high-pressure, high-temperature, and corrosive fluid service. Available in 45° and 90° configurations, in SW (Socket Weld), BW (Butt Weld), and Threaded (NPT/BSP) end connections, these elbows comply with ASME B16.11, MSS SP-79, MSS SP-83, and BS 3799. Grades available: SS 304/304L, 316/316L, 321, 347, 904L, and Duplex 2205. Price: SS 316 Forged Elbows from US$ 11.50/kg.

Product Overview

Forged vs. Wrought Elbows – Why Forging Matters

Forged stainless steel elbows are produced by shaping heated billets under high compressive force in precision closed dies, resulting in a dense, void-free grain structure with higher tensile strength, better impact toughness, and superior fatigue resistance compared to wrought or fabricated elbows. This makes them the preferred choice for Class 3000, 6000, and 9000 rated high-pressure piping systems in oil refineries, power boilers, chemical processing units, and offshore manifolds. ASME B31.3 process piping and ASME B31.1 power piping codes both specify forged fittings for critical service classifications.

Pressure-Temperature Ratings

Forged SS elbows per ASME B16.11 are rated at Class 3000 (SW/Threaded), Class 6000, and Class 9000. For example, a Class 3000 SW 90° Elbow in SS 316L at 100°F carries a pressure rating of 10,000 psi (689 bar). At 800°F (427°C), the same fitting retains approximately 6,500 psi (448 bar) per ASME Group 1.2 allowable stresses. Pressure-temperature ratings are published in full compliance with ASME B16.11-2021 tables, and de-rating curves are available for all listed grades.

Dimensional Range and End Connections

Size range: 1/8″ NPS to 4″ NPS (DN6 to DN100) for socket weld and threaded ends; 1/2″ to 48″ NPS for butt weld long radius and short radius elbows. Socket depth and bore diameters per ASME B16.11 Table 1. Butt weld ends are beveled to ASME B16.25 end prep. Wall thickness ratings match Schedule 40, 80, 160, and XXS pipe schedules. Threaded ends cut to ASME B1.20.1 (NPT) or BS 21 (BSPT) as specified.

Key Material Grades for Elbow Applications

SS 316L forged elbows are the standard selection for chloride-bearing process lines, offshore subsea piping, and pharmaceutical flow loops. SS 321 elbows are specified for high-temperature service (400–900°C) in boiler feedwater, steam headers, and thermal power plant auxiliary piping where sensitization is a risk. Duplex 2205 (SS 31803) forged elbows provide twice the yield strength of 316L with superior resistance to stress corrosion cracking, ideal for desalination brine circuits and offshore production manifolds.

Compliance and Material Certification

All forged stainless elbows are manufactured per ASTM A182 (bar/forging material), with chemical composition and mechanical properties certified to EN 10204 3.1 / 3.2. Welding end elbows are supplied with PWHT records where specified. Hydrostatic test per MSS SP-99 is available. PMI (Positive Material Identification) per IOGP S-562 and helium leak testing for critical service are performed on request. NDT capabilities include magnetic particle (MPI), liquid penetrant (LPI), radiographic (RT), and ultrasonic testing (UT) per ASME V.

Applications in Process Piping

Forged stainless steel elbows are installed in: crude oil gathering lines, natural gas processing trains, LNG regasification terminals, ethylene cracker hot sections, pharmaceutical WFI/PW loop systems, power plant desuperheater lines, pulp and paper digester piping, brewery and food processing CIP circuits, and seawater cooling systems. The combination of high mechanical strength, corrosion resistance, and code compliance makes them the universal choice for critical pipe routing changes in hydrocarbon, utility, and process industries.

Manufacturing Process

Billets are cut from ASTM A182-compliant bar stock, heated in controlled gas-fired furnaces to 1100–1200°C, and formed in matched metal closed dies on hydraulic forging presses of 250T to 2000T capacity. Post-forging operations include trimming, solution annealing (1040–1100°C, water quench), pickling in HNO3/HF acid bath, passivation per ASTM A967, CNC machining of socket bores and thread forms, and final dimensional inspection per ASME B16.11 using CMM and calibrated gauges.

Key Features

• Closed-die hot forged – eliminates casting porosity and segregation defects
• Full ASME B16.11 Class 3000/6000/9000 pressure rating compliance
• 100% dimensional inspection per ASME B16.11 with CMM
• EN 10204 3.1 / 3.2 material traceability and heat certificates
• Socket weld, butt weld, and threaded ends in one manufacturing facility
• Electropolished bores for pharmaceutical and hygienic flow service
• NDT: LPI, MPI, RT, UT available per project requirements
• Third-party inspection by SGS, BV, TÜV, and Lloyd’s Register

Grain Structure Advantage

During closed-die forging, the austenitic stainless steel grain flow is forced to conform to the elbow geometry, creating continuous, uninterrupted grain lines across the bend radius. This contrasts with fabricated (welded) elbows where the weld HAZ (Heat Affected Zone) represents a structural discontinuity. The result is a forged elbow with 30–40% higher fatigue life and significantly better resistance to stress corrosion cracking at the critical bend zone under cyclic thermal and pressure loading.

Socket Weld vs. Threaded End Elbows

Socket weld elbows (ASME B16.11) are preferred for permanent high-pressure piping in Class 3000 and above. A gap of 1.6 mm (1/16″) is maintained at the pipe bottom in the socket before welding to allow thermal expansion. Threaded elbows provide removability for instrument connections, sample points, and low-pressure utility services. Both types are manufactured from the same forged blank, ensuring identical pressure ratings; only the machined end connection differs. NPT threaded elbows use 1/16″ per foot taper per ASME B1.20.1.

Surface Finish and Cleanliness

Internal bore finish is machined to Ra 3.2 µm (125 µin) as standard. Electropolished to Ra ≤ 0.5 µm for pharmaceutical, biotech, semiconductor, and food-grade applications. External surfaces are pickled and passivated to bare metal finish. Colour-coded end caps (black = BW, red = SW, yellow = threaded) protect threads and socket bores during transit. Batch identification markings include: heat number, grade, class, size, and manufacturer’s logo per MSS SP-25 marking standards.

Corrosion Testing and Certification

Intergranular corrosion (IGC) test per ASTM A262 Practice E (Strauss Test) is performed on all SS 304L/316L/321/347 grades to confirm absence of sensitization. Pitting corrosion testing per ASTM G48 Method A (6% FeCl₃) is available for Duplex 2205 and 904L grades. Critical pitting temperature (CPT) certificates are provided for offshore and chemical service specifications. Chloride stress corrosion cracking (SCC) resistance of SS 316L is validated per ASTM G36 (boiling MgCl₂ solution test) on request.

Traceability and QC Documentation Package

Standard documentation package includes: Mill Test Report (EN 10204 3.1), dimensional inspection report, hardness test report, heat treatment (annealing) record, passivation certificate, PMI report (XRF), and visual inspection certificate. For nuclear/power applications: EN 10204 3.2 with authorized inspector witness, ASME NCA-3800 supplier qualification, and N-stamp support documentation are available. All documents supplied in PDF format with permanent digital traceability archive.

Technical Specifications

Material Grade International Equivalents

Product Types / Variants

Applications by Industry

Quality Standards and Certifications

Why Choose Stainless Steel Fittings India?

• ISO 9001:2015 certified manufacturer with 30+ years of forged fitting production
• In-house forging presses, CNC machining, threading, and heat treatment
• Full ASME B16.11 conformance with third-party inspection available
• SS 316 Forged Elbows from US$ 11.50/kg — competitive ex-works pricing
• Export documentation: GST Invoice, Form E, Certificate of Origin, and freight assistance
• Technical team for ASME B31.3 piping code compliance queries
• Fast turnaround: standard sizes in stock; custom grades in 2–4 weeks

Frequently Asked Questions (FAQ)

Q1: What is the pressure rating of a Class 3000 SS 316L SW elbow?

Per ASME B16.11, a Class 3000 socket weld elbow in SS 316L (Group 1.2 material) has a rated working pressure of 10,000 psi at ambient temperature, de-rated at elevated temperatures per ASME stress tables.

Q2: What is the difference between ASME B16.11 and ASME B16.9 elbows?

ASME B16.11 covers forged socket weld and threaded fittings in small bore (1/8″–4″). ASME B16.9 covers butt-welding fittings (all sizes, including large bore). Both specify forged or wrought material but differ in end connection type and size range.

Q3: Can you supply SS forged elbows with PED CE marking for Europe?

Yes. Forged elbows for European pressure equipment markets are supplied with PED 2014/68/EU category compliance, EN 10204 3.1 certificates, and CE marking where required by the application category and pressure/temperature conditions.

Q4: What is the minimum gap required for socket weld elbows before welding?

ASME B31.3 and B31.1 require a 1.6 mm (1/16″) gap at the base of the socket before final welding to accommodate thermal expansion of the pipe. Failure to maintain this gap can cause socket joint cracking in cyclic thermal service.

Q5: Do you supply forged elbows in Duplex 2205 and Super Duplex 2507?

Yes. Forged SS elbows in Duplex 2205 (UNS S32205 / EN 1.4462) and Super Duplex 2507 (UNS S32750 / EN 1.4410) are available in socket weld and butt weld configurations for offshore, desalination, and aggressive chemical service.

Q6: What is the price of SS 316 forged elbows per kg?

SS 316 Stainless Steel Forged Elbows are priced from US$ 11.50/kg ex-works India. Actual price varies by pressure class, size, quantity, and certification requirements. Contact us for volume pricing.

Q7: What is the lead time for standard forged elbow sizes?

Standard sizes in SS 316L Class 3000 SW: 7–14 working days. Custom sizes, high-alloy grades (904L, 2205), or EN 10204 3.2 certification: 3–5 weeks.

Q8: What NDT tests are performed on high-pressure forged elbows?

Standard: 100% dimensional inspection and visual examination. Optional: Liquid Penetrant Testing (LPI) per ASTM E165, Radiographic Testing (RT) per ASTM E1025, Ultrasonic Testing (UT) per ASTM A388, and Positive Material Identification (PMI) by XRF.

Q9: Are ASME B31.3 piping code compliance letters available?

Yes. Our technical team can provide code compliance letters confirming that supplied fittings meet ASME B31.3 Process Piping requirements for design pressure/temperature conditions specified by the buyer’s project.

Q10: What thread standard is used for threaded elbows?

NPT (National Pipe Taper) per ASME B1.20.1 is standard for US/international markets. BSPT (British Standard Pipe Taper) per BS 21 / ISO 7-1 is available for UK, European, and Middle East specifications. Thread gauging on 100% of production.

Equivalent Terms – International Languages

Related Products – Stainless Steel Forgings

• Stainless Steel Component Forging / Forged Parts
• Stainless Steel Forged Flanges
• Stainless Steel Forged Parts Machined Forgings
• Stainless Steel Eye Bolts / Forged SS Eye Bolts
• Stainless Steel Ball Forging

Request a Quote – SS Forged Elbows

Stainless Steel Fittings India is a leading manufacturer and exporter of stainless steel forged elbows. SS 316 forged elbows priced from US$ 11.50/kg ex-works India. We serve EPC contractors, power utilities, oil & gas operators, and industrial distributors globally.

📧 Email: info@stainlesssteel-fittings-india.com | Serving USA, UAE, UK, Germany, Singapore, Australia, and 40+ countries.

{
